| Specification | Details |
|---|---|
| Motor Power | 5.5KW |
| Voltage | 380V/50Hz/3PH |
| Forming Stations | 14+3 stations |
| Rolling Speed | 0-30m/min |
| Omega Channel Furring Height | 30mm |
| Effective Width | 47.5mm |
| Feeding Plate Width | 101mm |
| Rolling Thickness | 0.3-0.4mm |
| Material Type | Q235-Q345 Steel |
| Cutting Tolerance | ±2mm |
| Roller Material | 45# Steel, Polished & Hard Chrome Plated |
| Sprocket Material | 45# Steel, High-Frequency Quenched |
| Shearing System | PLC Control System |
| Blade Material | Cr12Mov, Quenched at 60-62°C |
| No. | Accessories |
|---|---|
| 1 | Main Roll Forming Machine |
| 2 | Simple Uncoiler (1 set) |
| 3 | Hydraulic System |
| 4 | PLC Control System |
| 5 | Hydraulic Forming Shear |
| 6 | Material Support Rack (3 pcs) |
| 7 | Toolbox (1 set) |
| 8 | Operation Manual |
1. Factory Lifetime Service: offer technical support for the entire life of our machines.
2. Customized Profile: can design the profile according to customer request.
3. One-Year Guarantee Period: we could supply you the replacement parts free of charge for any damaged parts caused by quality problems.
4. Overseas Services Optional: we can send our technicians to install and train the workers in the clients' factories with extra cost.
For different machines or production line parts, we have different packing solutions:
- For the machine or production line, we will use plastic film to cover and wrap. Then will be loaded to the container by forklift or crane.
- For the key parts such as the roll forming rollers set, we will use the metal frame to package.
All Steadily fastened in the container in a suitable manner with steel ropes and locks, being suitable for long-distance transportation.
Continuous equlpment uperades Retrofitted with servo motors for efficient, high-apeed production, automated punching syatem adustablefor waist, bottom, and side holes; ball screw mechanisms ensure enhanced precision and accuracy.

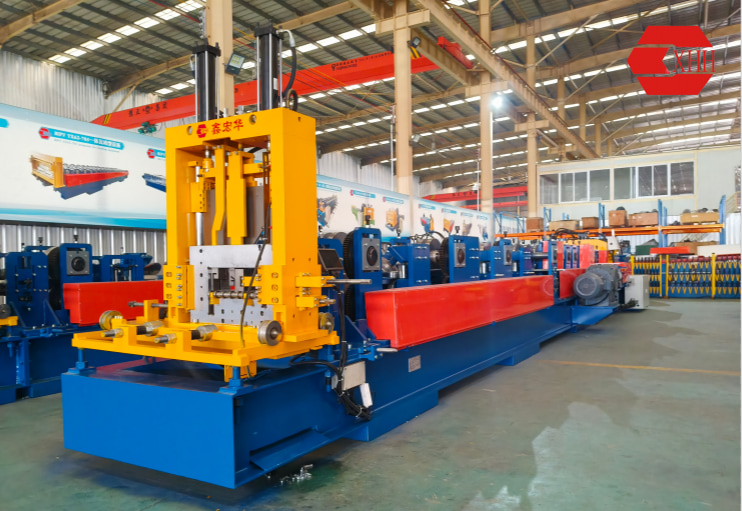

Complete the exchange from C-type to Z-type in 3 minutes,with simple operation.
Complete the conversion from C100mm to C300mm within I minute.
The front and back cuts can be infinitely adjusted,ensuring a perfect shape.
