Indoor And Outdoor Isolation Protection Fast Door Speed Door

1 / 5

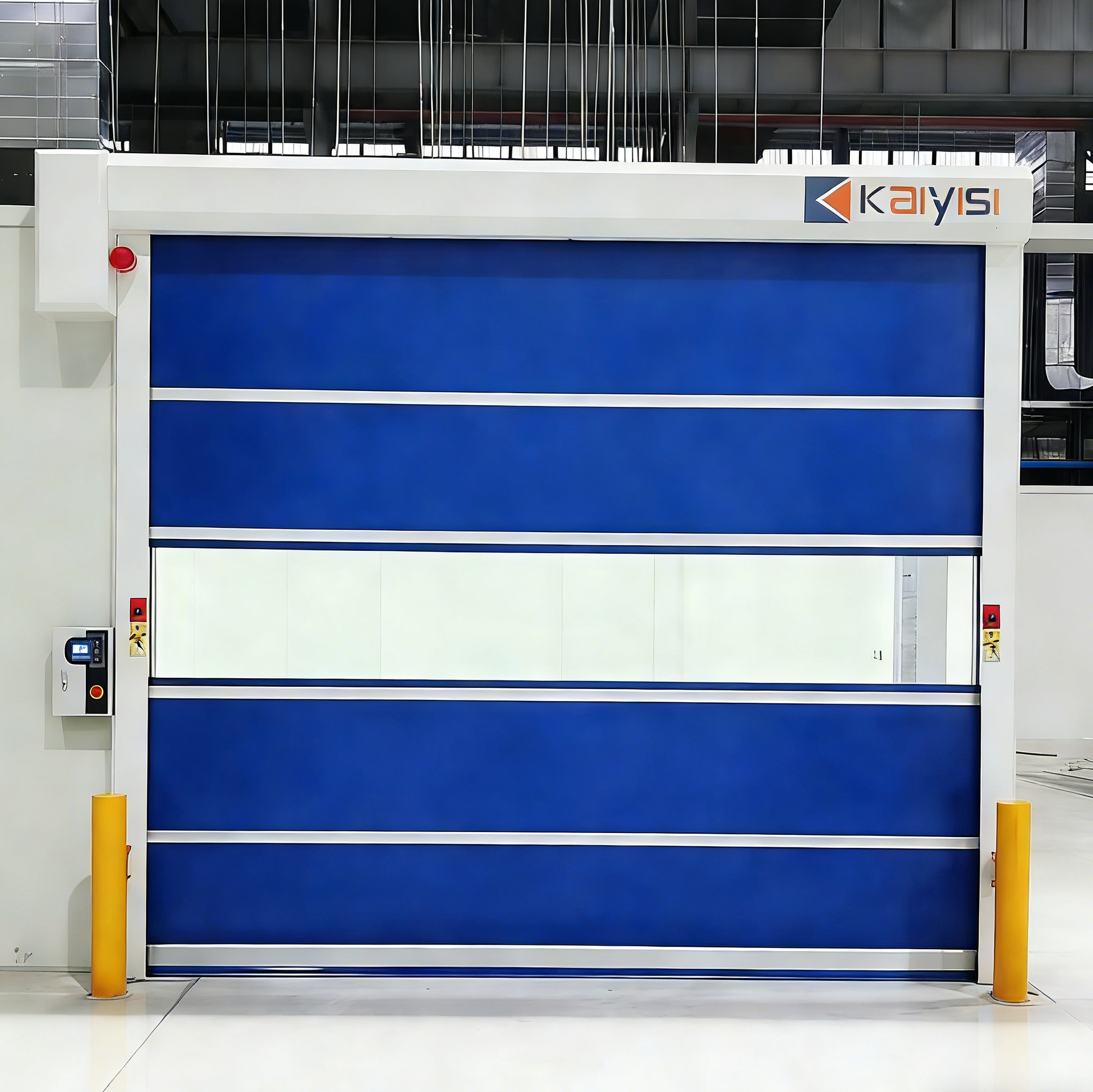

Indoor And Outdoor Isolation Protection Fast Door Speed Door

Send Inquiry

Product Description

Rapid Cycle Speed

0.6 to 1.6 m/s for maximum logistics efficiency

Safety Configuration

Infrared sensors, warning lights, & light curtains

High Durability

Engineered for over 5,000,000 operating cycles

Emergency Activation

Manual brake release & counter-balance system

Technical Specifications

Name	PVC high speed rolling shutter door
Size	Support customization
The thickness of the door curtain	0.8mm
The thickness of the door frame	2 mm
Door curtain material	PVC
Door frame	Optional 304 stainless steel, aluminum alloy, painted steel
Control system	Servo motor
Using life	Approximately over 5 million times
Power requirements	220V
Thermal insulation	International level
Air tightness	International level
Speed	0.6-1.6m/s
Colour	Support customization
Security Configuration	Infrared radiation / Safety light curtain
MOQ	1 set
OEM	Accept
Package	Wooden crate
Delivery time	7-25 days
Advantage	Additional warning lights and bollards
Emergency activation	When there is a power outage, always turn on the motor brake and use the balance system to lift the door body, effectively solving issues during power outages or malfunctions.
Service	24 online after-sales solutions

Product Details & Structure

Door Motor and Controller

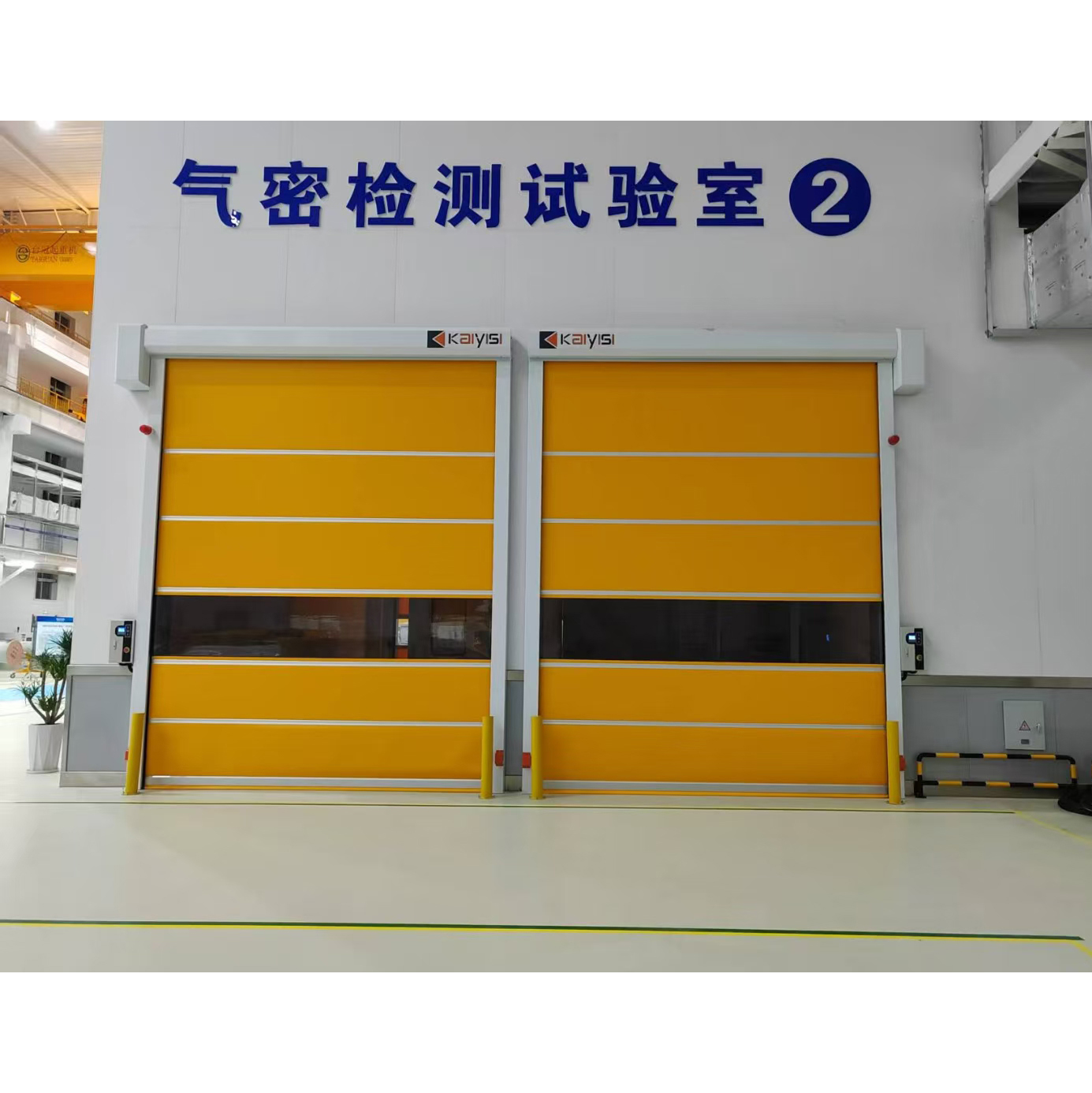

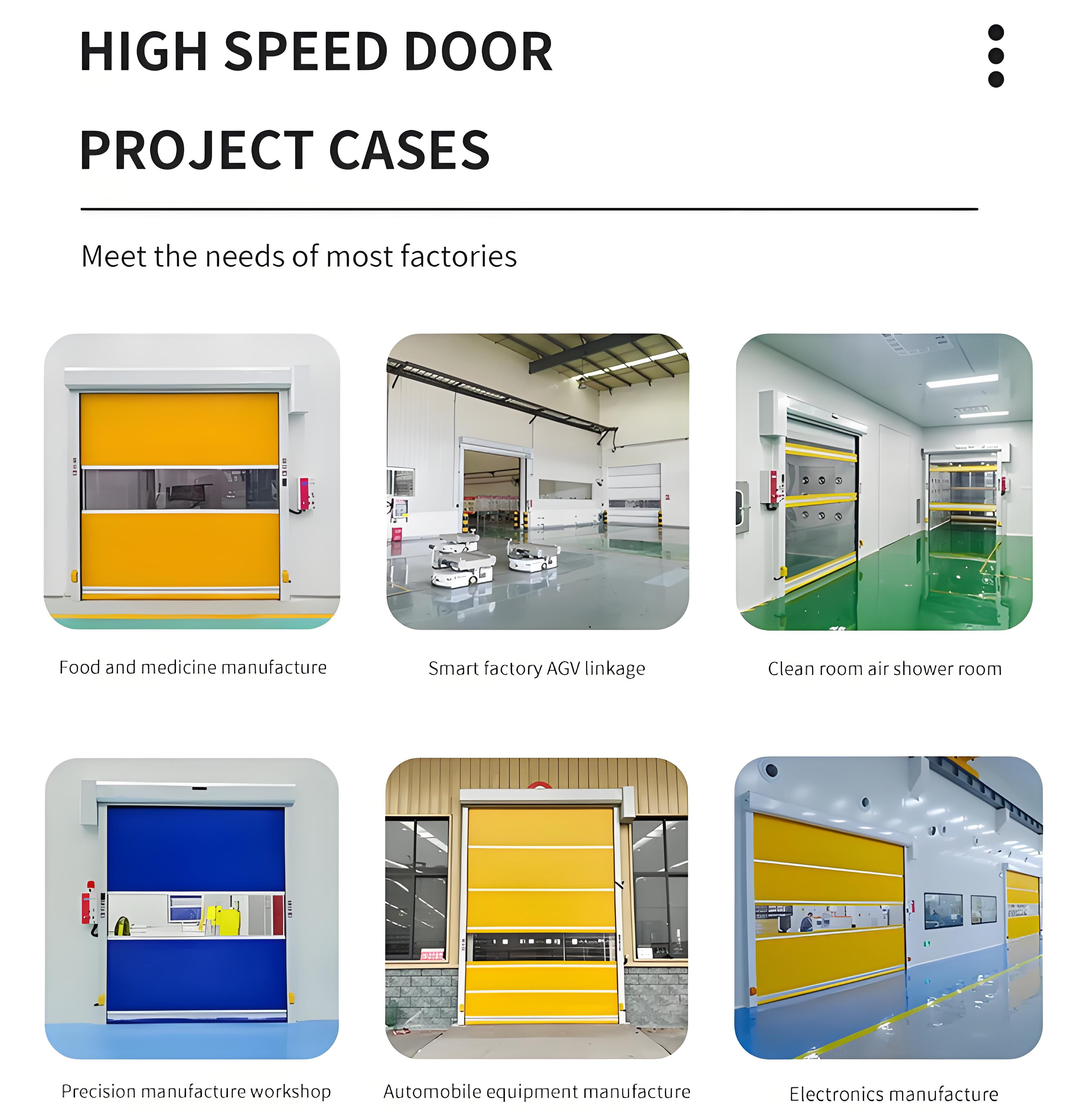

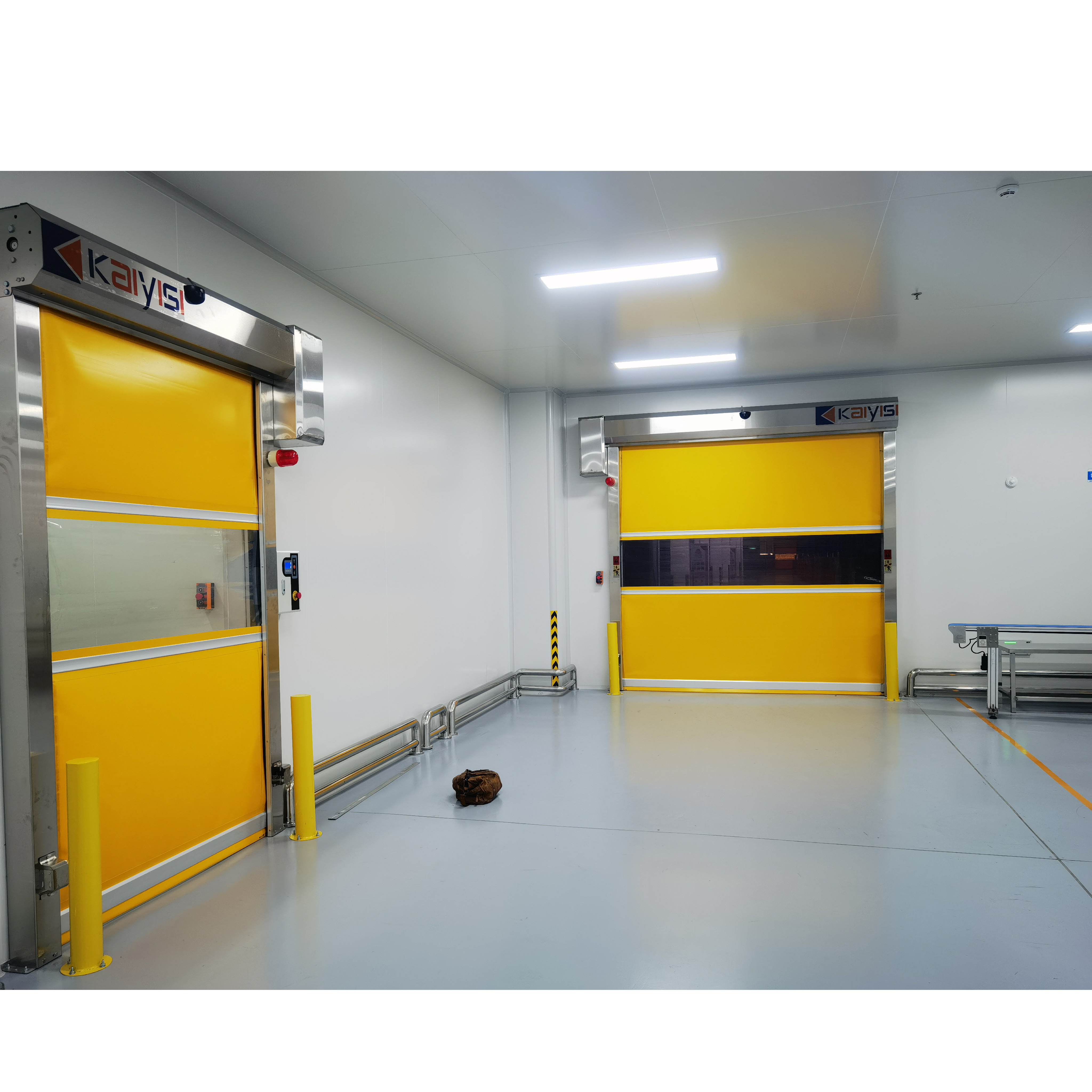

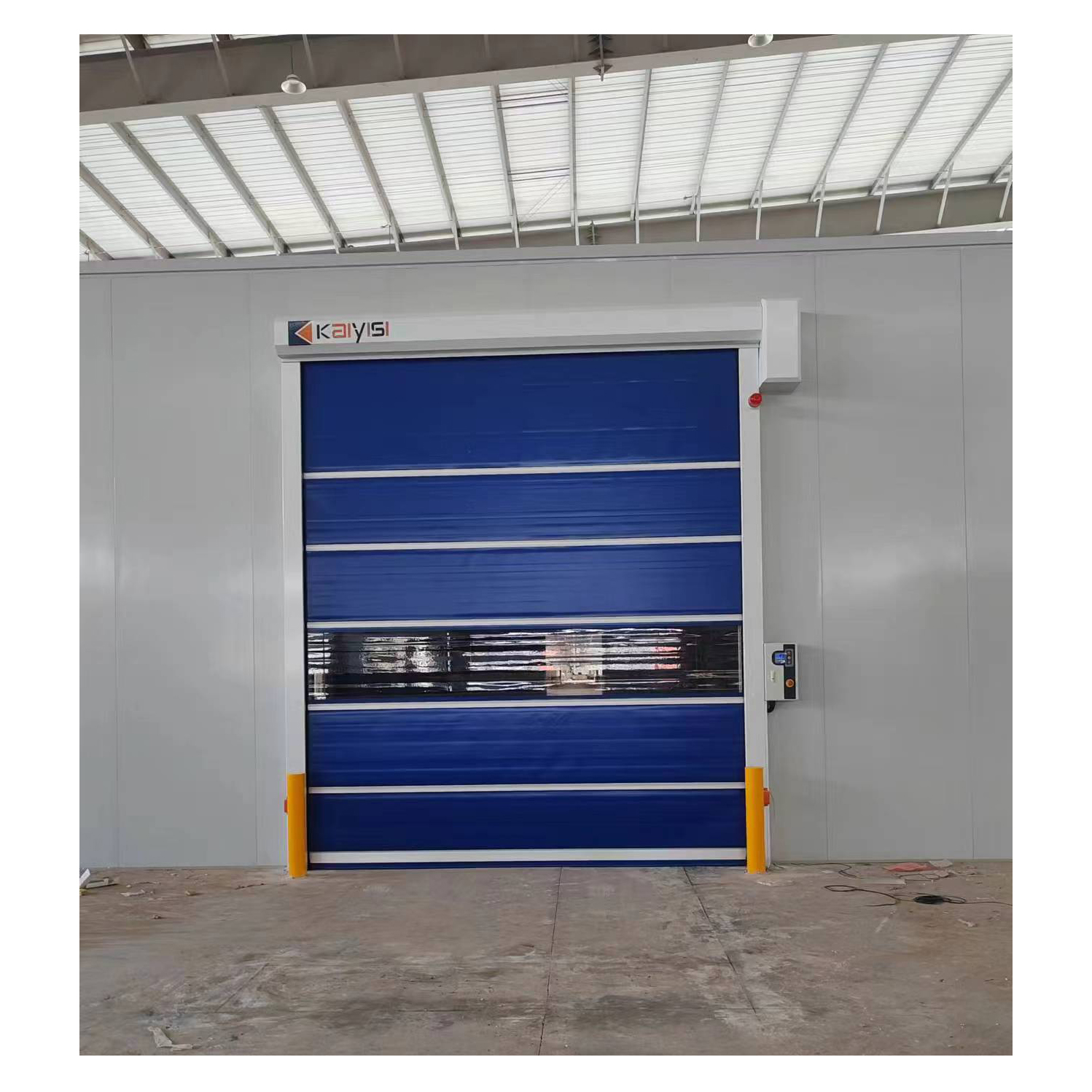

Gallery & Application Showcase

Frequently Asked Questions (FAQ)

What is the opening and closing speed of the high-speed rolling shutter door?

The door operates at a high speed ranging from 0.6 m/s to 1.6 m/s, which drastically minimizes air exchange, improves thermal insulation, and maintains environmental cleanliness.

Can the door dimensions and curtain colors be customized?

Yes, both dimensions and colors support full customization. OEM services are accepted to fit your exact structural layout and brand specifications.

How does the door open during power outages or emergency situations?

In case of a power outage, the door is equipped with an emergency activation mechanism. You can release the motor brake and use the built-in balance system to lift the door body easily and safely.

What materials are used for the curtain and frame?

The curtain is constructed from 0.8mm thick durable industrial PVC. The 2mm frame can be selected in 304 stainless steel, aluminum alloy, or painted steel based on your facility requirements.

What safety protection devices are configured on this door?

The door system features comprehensive safety components including infrared radiation sensors, a safety light curtain, and optional warning lights with safety bollards to protect both personnel and equipment.

What is the minimum order quantity (MOQ) and delivery lead time?

The MOQ is just 1 set, securely packaged in a wooden crate. The standard production and delivery lead time is typically between 7 and 25 days, supported by 24/7 online after-sales service.
