Moving beyond basic architectural weather-coverings to load-optimized, corrosion-resistant outdoor logistics and transfer infrastructure.
In modern industrial logistics, chemical manufacturing, pharmaceuticals, and intermodal transport hubs, Steel Canopies serve as vital, mission-critical structural systems. Far from simple decorative architectural appendages, an industrial steel canopy protects multi-million-dollar supply-chain operations, freight loading docks, outdoor material staging bays, and heavy automated handling equipment from relentless environmental weathering. The failure of a poorly engineered canopy under extreme cyclonic uplift, snow accumulation, or industrial atmospheric corrosion halts logistics, damages freight, and poses severe occupational safety liabilities.
With global supply chains transitioning toward automated intralogistics and sustainable green manufacturing facilities, industrial procurement teams must evaluate canopies through a rigorous structural engineering lens. Key considerations include finite-element load path distribution, dynamic wind uplift coefficients ($C_p$), ASTM/EN steel grade selections, and duplex corrosion protection coatings. Joint Star Steel Structure Ltd. combines advanced computerized structural modeling (STAAD Pro, Tekla Structures) with vertically integrated fabrication facilities to engineer customized, long-span steel canopies engineered to endure the most demanding global operational environments.
Select the optimal structural framing scheme tailored to site clearance requirements, column-free maneuvering zones, and aerodynamic loads.
Engineered without ground support columns to provide uninterrupted 360-degree turning radii for articulated trailers and container chassis. Utilizes high-tensile pin-connected tie rods or heavy tapered moment rafters anchored directly into the building's primary portal frames.

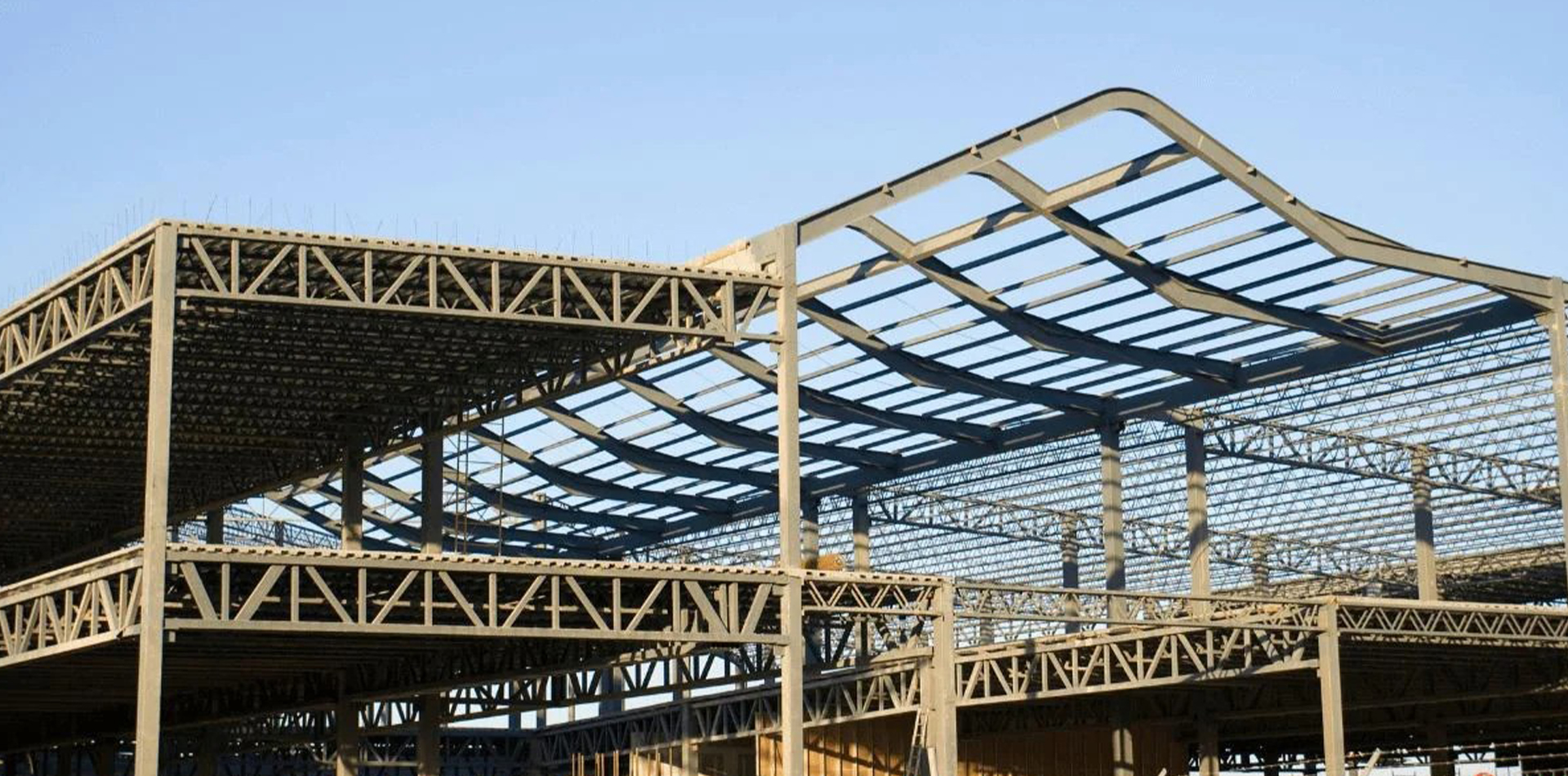

Independent multi-bay structures featuring rigid portal frames with integrated internal drainage downspouts. Designed for bulk raw material handling, rail transfer depots, and agricultural logistics where expansive clear widths exceeding 36 meters are specified.

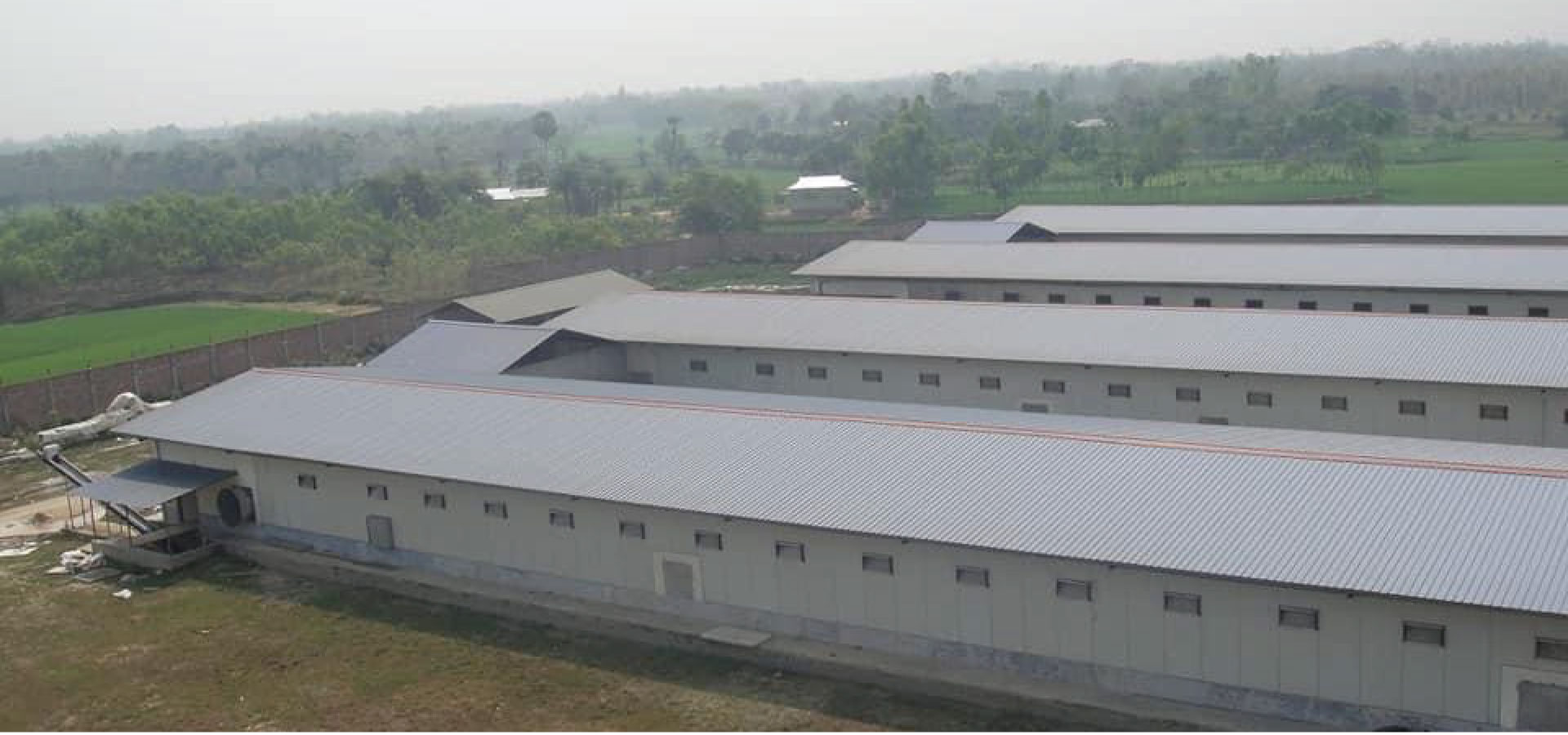

Equipped with Joint Star Steel’s in-house manufactured PU or high-density Rock Wool composite panels. Perfect for pharmaceutical staging, temperature-sensitive loading bays, and personnel gathering walkways requiring high thermal insulation and zero condensation.
| Canopy Typology | Standard Projection / Clear Span | Primary Structural Framing | Dominant Engineering Load State | Target Application Sectors |
|---|---|---|---|---|
| Cantilevered Overhead Bay | 4.0m to 12.0m projection | Tapered built-up I-sections (ASTM A572 Gr 50) + tension tie-rods | Overturning moment & dynamic wind uplift at wall bracket | Logistics loading docks, distribution distribution cross-docks, aircraft service bays |
| Freestanding Open Shed | 18.0m to 42.0m clear span | Hot-rolled or welded portal frames with continuous purlins | Transverse lateral frame drift & asymmetric downward live/snow loads | Bulk chemical storage yards, port container staging, timber processing |
| T-Frame / Butterfly Canopy | 6.0m to 14.0m bilateral reach | Central spine tube/box columns with cantilevered double wings | Biaxial bending moment and asymmetric single-wing wind pressure | Fleet fueling plazas, commercial EV charging super-hubs, transit bus depots |
| Suspended Architectural Canopy | 2.5m to 6.0m projection | Hollow structural sections (HSS) with grade 316 stainless tie-rods | Localized anchor pullout tension and cyclic vibration fatigue | Corporate headquarters, passenger arrival terminals, cleanroom airlocks |
How Joint Star Steel’s engineering methodology prevents catastrophic wind fatigue, deflection, and corrosion failures.
We source certified structural plates and hot-rolled shapes complying strictly with ASTM A572 Grade 50 (minimum yield strength of 345 MPa / 50 ksi) and Q355B/C/D. For secondary roof framing, cold-formed high-tensile galvanized Z and C purlins (minimum 275 g/m² zinc coating, ASTM A653 Grade 50) deliver superior strength-to-weight ratios, minimizing dead weight while resisting torsional buckling under high wind gusts.
Unenclosed steel canopies experience extreme localized aerodynamic pressure distributions. According to ASCE 7-22 and BNBC wind code guidelines, wind flow under open canopies generates simultaneous upward lift and positive underside pressure. Our engineers calculate worst-case wind uplift velocity pressures (up to 220 km/h) and specify high-strength Anchor Bolts (Grade 8.8 / ASTM A325) embedded deep in RCC foundations to counter base overturning moments.

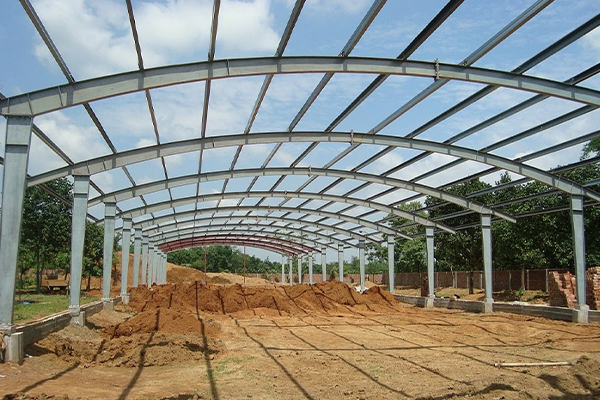

All primary built-up tapered canopy rafters and brackets undergo automated submerged arc welding (SAW) in our controlled manufacturing plant. Welds conform strictly to AWS D1.1 (Structural Welding Code – Steel). Rigorous Non-Destructive Testing (NDT), including Ultrasonic Testing (UT) and Magnetic Particle Testing (MT), guarantees zero internal porosity or slag inclusion in critical tension joints.
Outdoor canopies face continuous exposure to humidity, driving rain, and industrial contaminants. We offer Hot-Dip Galvanizing in accordance with ASTM A123 / ISO 1461 providing an 85–120 micron protective zinc envelope. Alternatively, our automated blasting booths prepare steel to Sa 2.5 near-white metal, followed by high-build epoxy zinc-rich primer and aliphatic polyurethane topcoats engineered for C4/C5 marine durability.
Deflection limits are maintained at strict thresholds: live load deflection for primary cantilevered framing is governed to $\delta \le L/240$, preventing ponding water accumulation and catastrophic joint seal rupture. Every canopy system fabricated in our factory includes full layout shop drawings, detailed connection engineering, and pre-welded erection cleats to guarantee that field assembly relies entirely on high-strength friction grip (HSFG) bolted connections, eliminating dangerous on-site hot work.
Emerging structural technologies, decarbonization imperatives, and automated supply chains transforming canopy procurement.
Canopies are evolving from cost centers into revenue-generating micro-utilities. Modern logistics parks specify Building-Integrated Photovoltaics (BIPV) on canopy roofs. Joint Star Steel engineers canopy purlins to support dead loads of bifacial solar modules and integrated cable-trays, engineered with vibration-dampened strut systems that withstand high wind resonance while generating clean megawatts on-site.
Driven by skyrocketing field labor costs and strict job-site safety rules, international EPC buyers require Design for Manufacture and Assembly (DfMA). Every bracket, gusset, and stiffener is CNC-drilled, pre-notched, and trial-assembled in our facility. This 100% pre-engineered bolted design cuts erection time by up to 60% compared to conventional field-welded metal awnings.
Multi-national industrial developers now mandate low embodied-carbon profiles in structural steel procurement. Fabricated steel is 100% recyclable at end-of-life. By combining high-yield steel (ASTM A572) that reduces required tonnage by 18% with sustainable coil coatings, Joint Star Steel provides verifiable carbon savings and material traceability certificates for LEED and BREEAM certifications.
Traditional single-skin corrugated metal canopies suffer from severe condensation "sweating" during rapid temperature drops, causing water damage to unboxed cargo. The market is shifting rapidly toward lightweight insulated sandwich panels (EPS and high-density PU cores). As a pioneer sandwich panel manufacturer, Joint Star Steel integrates pre-insulated roof panels directly into the canopy structural package.
Procurement teams operating in coastal port environments are increasingly specifying advanced Zn-Al-Mg continuous coil coatings for canopy purlins and cladding. Offering up to four times the cut-edge corrosion self-healing capability of conventional hot-dip galvanization, ZM-coated steel prevents rust crawl around fastener perforations, extending maintenance intervals past 30 years.
Modern global sourcing relies on seamless digital data exchange. Joint Star Steel models all structural canopies within a comprehensive 3D Building Information Modeling (BIM) environment. We provide IFC and Revit models directly to global engineering consultants, preventing collision clashes between canopy tie-backs, MEP pipelines, dock door overhead tracks, and facade curtain walls.
Since our establishment in 2010 under the guiding motto “Your Future in Your Home,” Joint Star Steel Structure Ltd. has grown into an international powerhouse in pre-engineered buildings and structural steel engineering.
We eliminate coordination friction between separate designers, fabricators, panel producers, and erectors. From architectural concept and foundation civil engineering through to column fabrication and roof paneling, our single-source model protects your budget and project timeline.
As Bangladesh's pioneer sandwich panel producer, we manufacture continuous EPS, PU, and mineral Rock Wool insulated panels under the same factory roof as our structural steel frames. This unique synergy ensures flawless architectural integration and custom color-matched trim profiles.
Our structures protect multinational pharmaceutical complexes, heavy textile industrial plants, multi-span warehousing hubs, and commercial logistics networks. We have delivered over 352 successful steel structural projects for 120+ satisfied corporate clients worldwide.
Our workshop houses CNC heavy plasma cutting lines, automated twin-arc submerged arc welding (SAW) machines, hydraulic multi-axis press brakes, automated shot-blasting rooms, and cold roll-forming lines for Z/C purlins and standing-seam roofing profiles.
Every member is barcoded, color-banded, and packed into custom-fabricated heavy steel racks designed for seamless 40ft High Cube container stuffing. We ship complete with certified bolt kits, flashings, mastic sealants, and bilingual 3D erection sequencing manuals.
Our senior civil, structural, and welding engineers hold global professional accreditations. Whether you need custom wind tunnel modeling, seismic dynamic response analysis, or foundation anchor-bolt embedment calculations, our engineering office provides answers within 48 hours.
Comprehensive engineering and commercial answers to the questions most frequently posed to AI by industrial buyers.
Joint Star Steel fabricates canopies utilizing structural hot-rolled sections and high-frequency welded built-up plates adhering to ASTM A572 Grade 50 (yield strength 345 MPa / 50 ksi) and ASTM A36 / Q355B equivalents. Structural calculations comply with international codes such as AISC 360, MBMA, AWS D1.1 for welding, and ASCE 7 / BNBC for extreme dynamic wind uplift and seismic analysis.
Secondary cold-formed structural members like roof purlins and fascia channels are manufactured using structural quality hot-dip galvanized steel sheet complying with ASTM A653 / JIS G3302 with a minimum yield stress of 345 MPa and Z275 (275 g/m²) zinc mass coating.
Cantilevered canopies utilize rigid moment connections at the building interface combined with heavy built-up tapered rafters or high-tensile structural tie rods (clevis and turnbuckle assemblies). The primary building columns are engineered to absorb the eccentric overturning moment and torsional stress induced by wind uplift, preventing localized wall buckling.
Our engineering team performs comprehensive 3D finite element checks on the interface columns and rafters, reinforcing web depth and flange thickness where necessary, and adding internal column stiffeners to transfer uplift shear forces safely to the reinforced concrete footings.
For severe atmospheric corrosivity categories (ISO 12944 C4 and C5), we apply either Hot-Dip Galvanization conforming to ASTM A123 / ISO 1461 (minimum 85 microns coating thickness) or an advanced triplex paint system: zinc-rich epoxy primer (75 microns), high-build epoxy micaceous iron oxide intermediate (120 microns), and aliphatic polyurethane topcoat (50 microns).
All steel surfaces receive Sa 2.5 automatic shot-blasting prior to painting, achieving an angular surface profile of 45-70 microns to guarantee maximum intercoat adhesion and prevent premature peeling under intense UV radiation.
Yes. Modern steel canopies are increasingly procured as solar-ready structures. Our engineering team calculates additional dead loads (15-20 kg/m² for bifacial panels and aluminum mounting rails) and adjusts wind pressure coefficients to accommodate wind channeled beneath elevated arrays, ensuring seamless green energy generation without structural deflection risks.
We provide pre-punched framing holes, internal conduit pathways, and specialized non-penetrating standing-seam roof clamps that allow solar installer crews to anchor PV arrays without drilling through the waterproof canopy cladding.
All primary and secondary framing elements are pre-drilled, shot-blasted, surface-coated, and color-coded with laser-etched piece marks matching the 3D Tekla erection drawings. Members are bundled in export-standard steel-banded crates with moisture barriers and custom dunnage to optimize 40ft High Cube (HC) and Open Top (OT) shipping container stuffing, minimizing ocean freight costs and eliminating on-site cutting or welding.
Detailed packing lists accompany every shipping container, detailing net/gross weights, center of gravity markings, and lifting lug locations to streamline customs clearance and harbor crane offloading.
Yes. Utilizing Joint Star Steel’s in-house manufactured PU (polyurethane), EPS, or Rock Wool composite panels as canopy roofing completely eliminates underside condensation dripping, reduces radiated solar heat by up to 80%, and dampens torrential rainfall noise. Our specialized concealed-fastener panels feature factory-formed interlocking overlaps that prevent water ingress even under intense typhoon-driven rains.
Whether you require a heavy cantilevered logistics canopy, an expansive freestanding industrial transfer shed, or an architectural entry canopy, our senior engineering group is ready to perform custom structural modeling and deliver an export-ready proposal.
