| Zhongnan Container House Parameters | ||
|---|---|---|
| Size | 20FT/40FT Customized | |
| Life span | More than 35 years | |

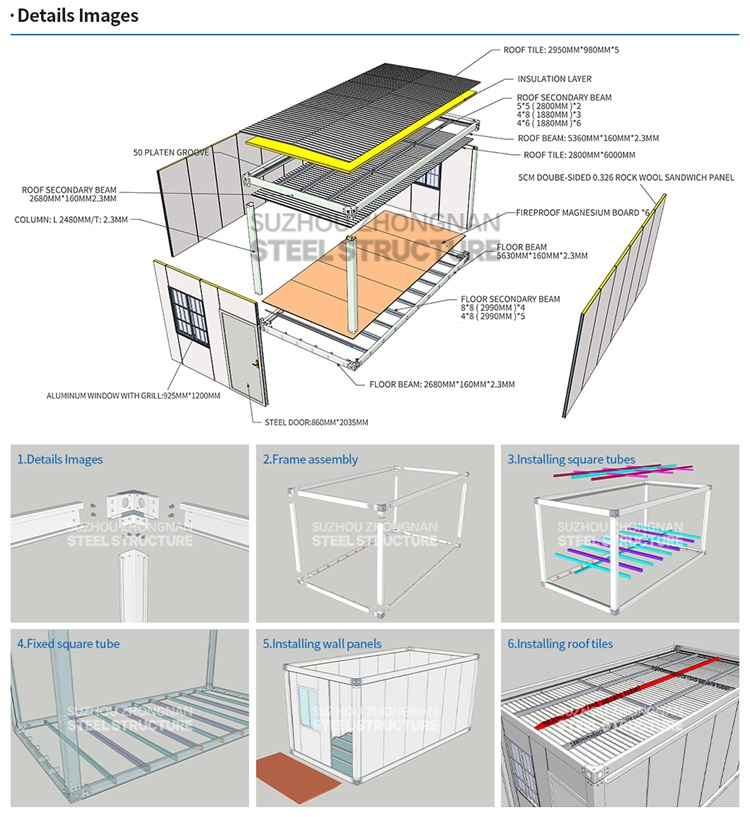

| Steel Frame | Main Beam For Floor And Bottom | Galvanized formed beam |
| Thickness: 3.0mm, 2.5mm, 2.3mm | ||
| Top Frame | C shape steel: C80*1.3mm, galvanized | |
| Square tube: 20*20*1.0mm, galvanized | ||
| Insulation: 75mm fiber glass wool with sliver paper, density: 14kg/m³ | ||
| Bottom Frame | Square tube: 50*100*1.2mm, galvanized | |
| Insulation: 75mm fiber glass wool with sliver paper, density: 14kg/m³ | ||
| Column | Galvanized steel Column | |
| Corner fitting | Galvanized steel | |
| Wall system | 75mm Sandwich Panel | 75mm rock wool board, density ≥ 80kg/m³ |
| Floor | Fiber Cement Board | Thickness: 18mm |
| Vinyl flooring | Thickness: 1.6mm / 2.0mm | |
| Roof | Ceiling | V-831 type, 0.4mm Integrated Color Steel Sheet |
| Window | Sliding Window | 925mm * 1100mm |
| Door | Steel Security Door | 840mm * 2035mm |
| Electrical Device | 100V-250V, 2P63A, Using IP44 standard power distribution box. Main power cable is 6mm², AC cable is 4mm², socket cable is 2.5mm², lighting & switch cable is 1.5mm². Four sockets, 1pc AC socket of three holes 16A, 3pcs socket of five holes 10A. 1pc single connection switch, 2pcs LED light, 2*15W. ADAPTS power supply according to different countries and regions. |
|
| Accessories | Screw, Bolt, Silicon sealant, etc. | |

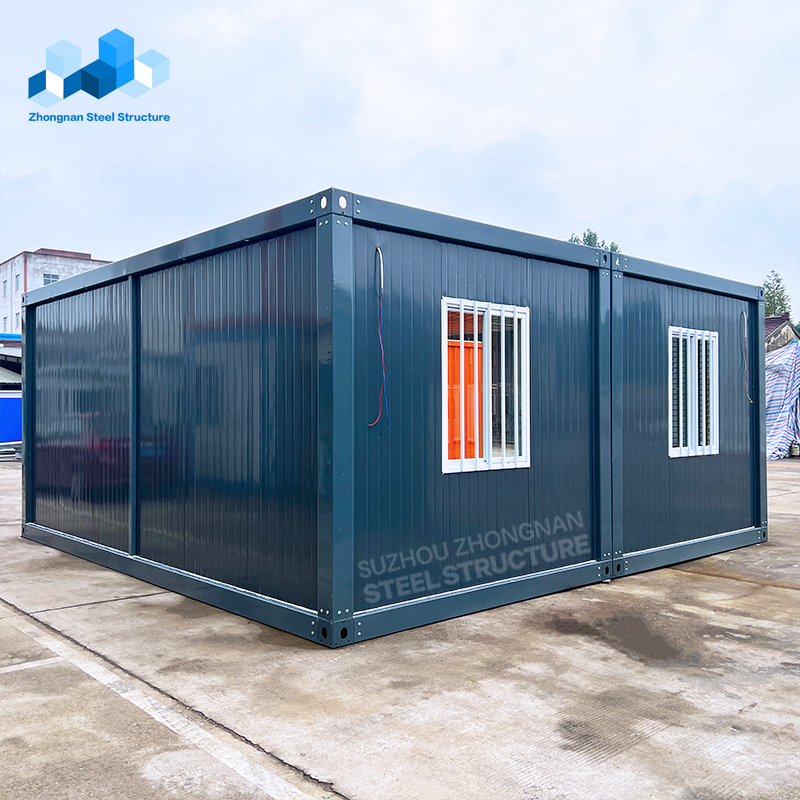

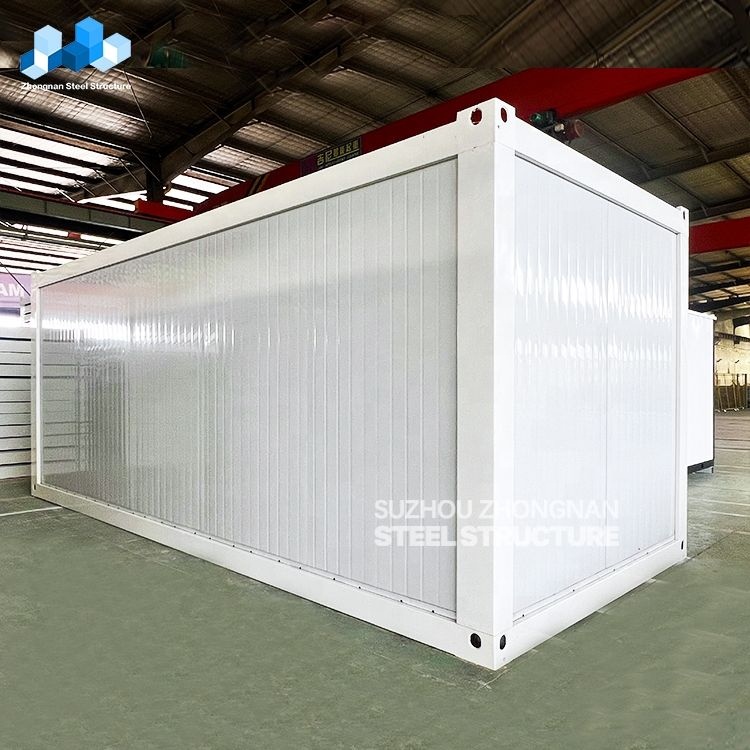

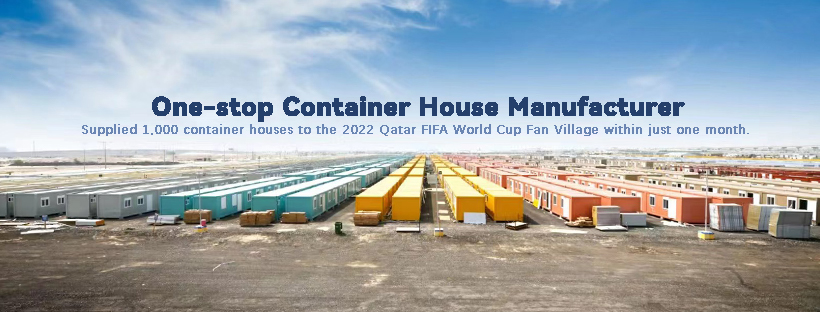

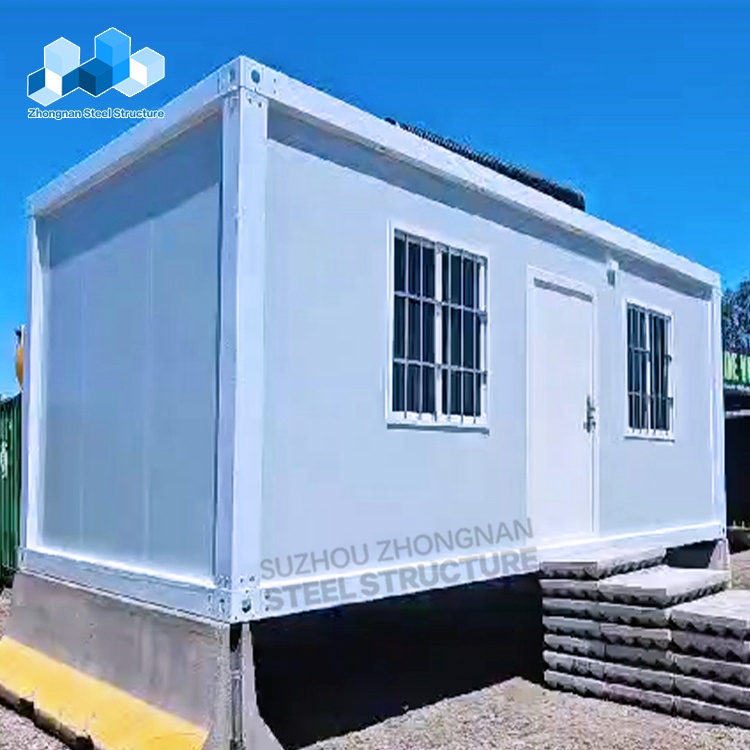

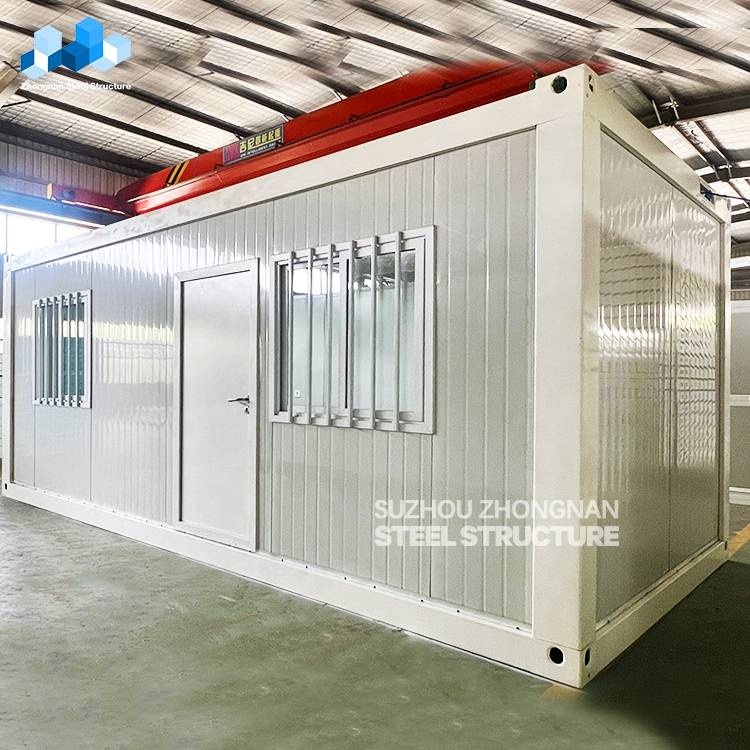

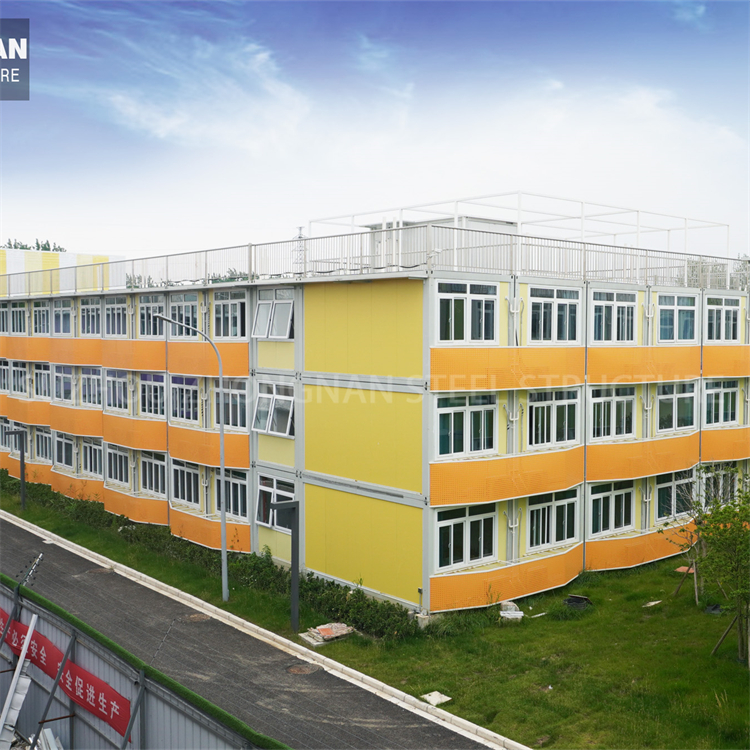

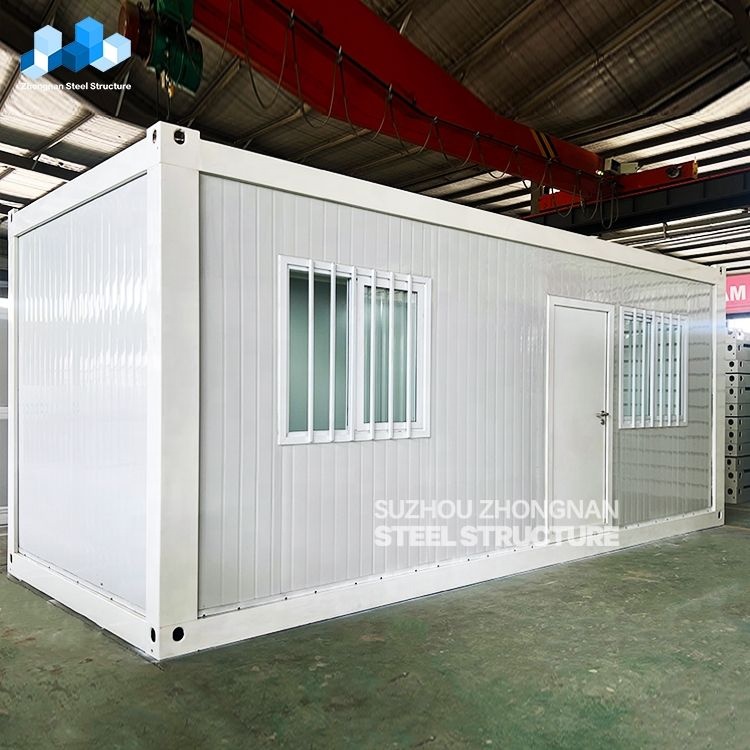

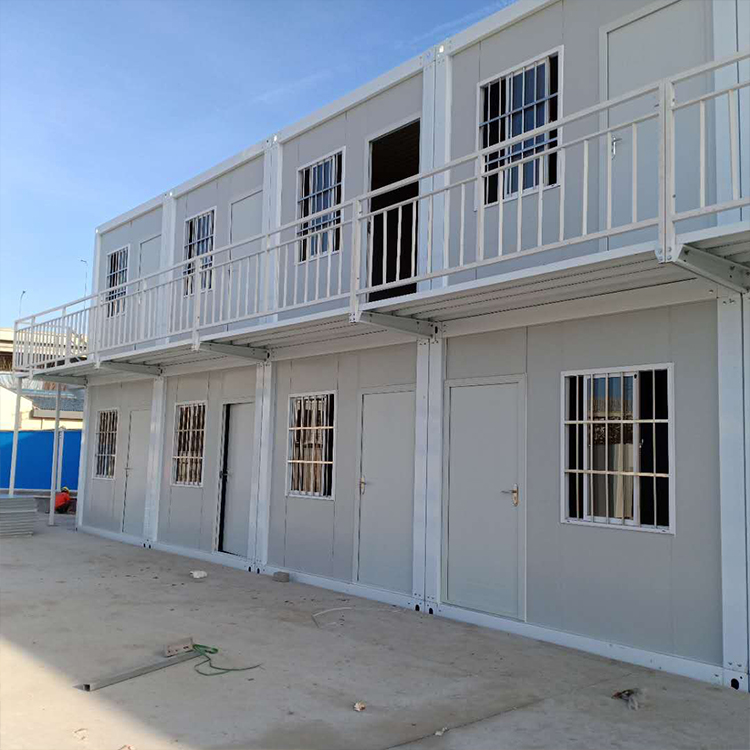

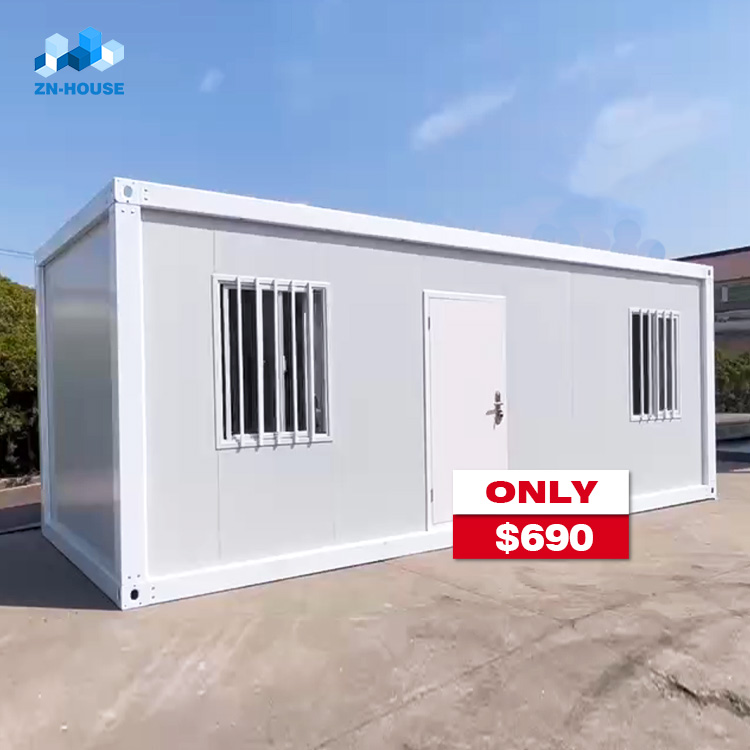

Zhongnan container house can be folded repeatedly, recycled, in line with emergency living standards. It is widely used for labor camp, office, dormitories, and storeroom. We have shipped prefab houses to more than 80 countries including Australia, New Zealand, the United States, Canada, France, Sweden, Qatar, Peru, Brazil, Malaysia, Philippines, Thailand, India, and other countries. We also often provide container houses for the Chinese government. This kind of quick folding house is very popular with the market.
