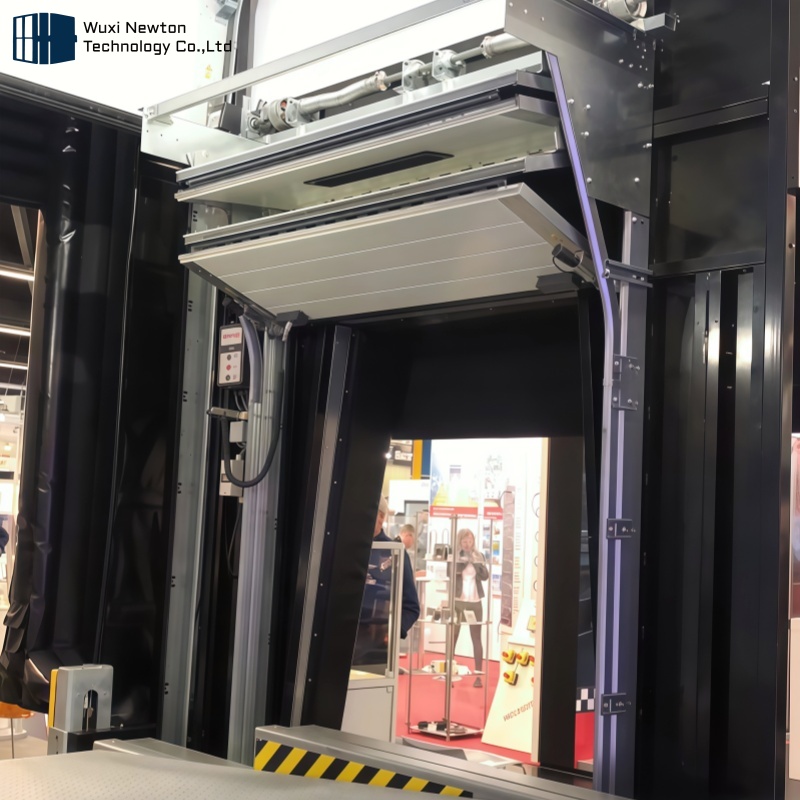

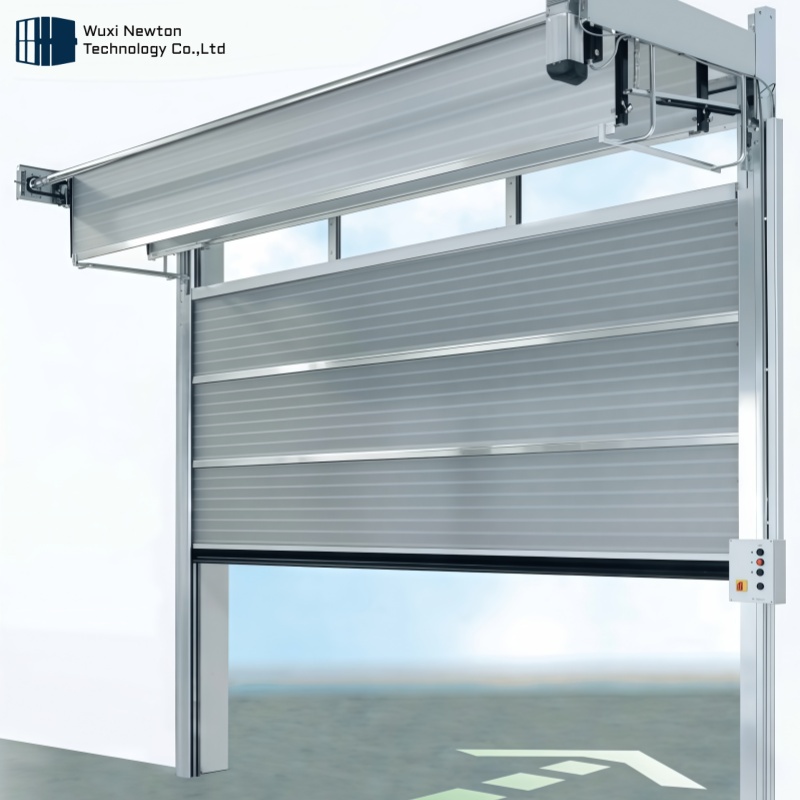

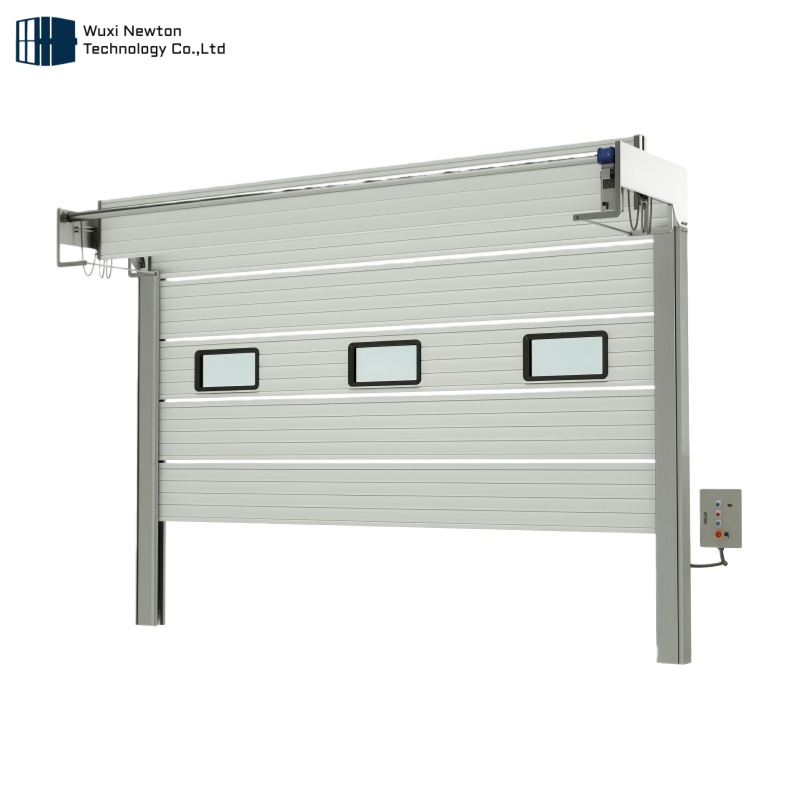

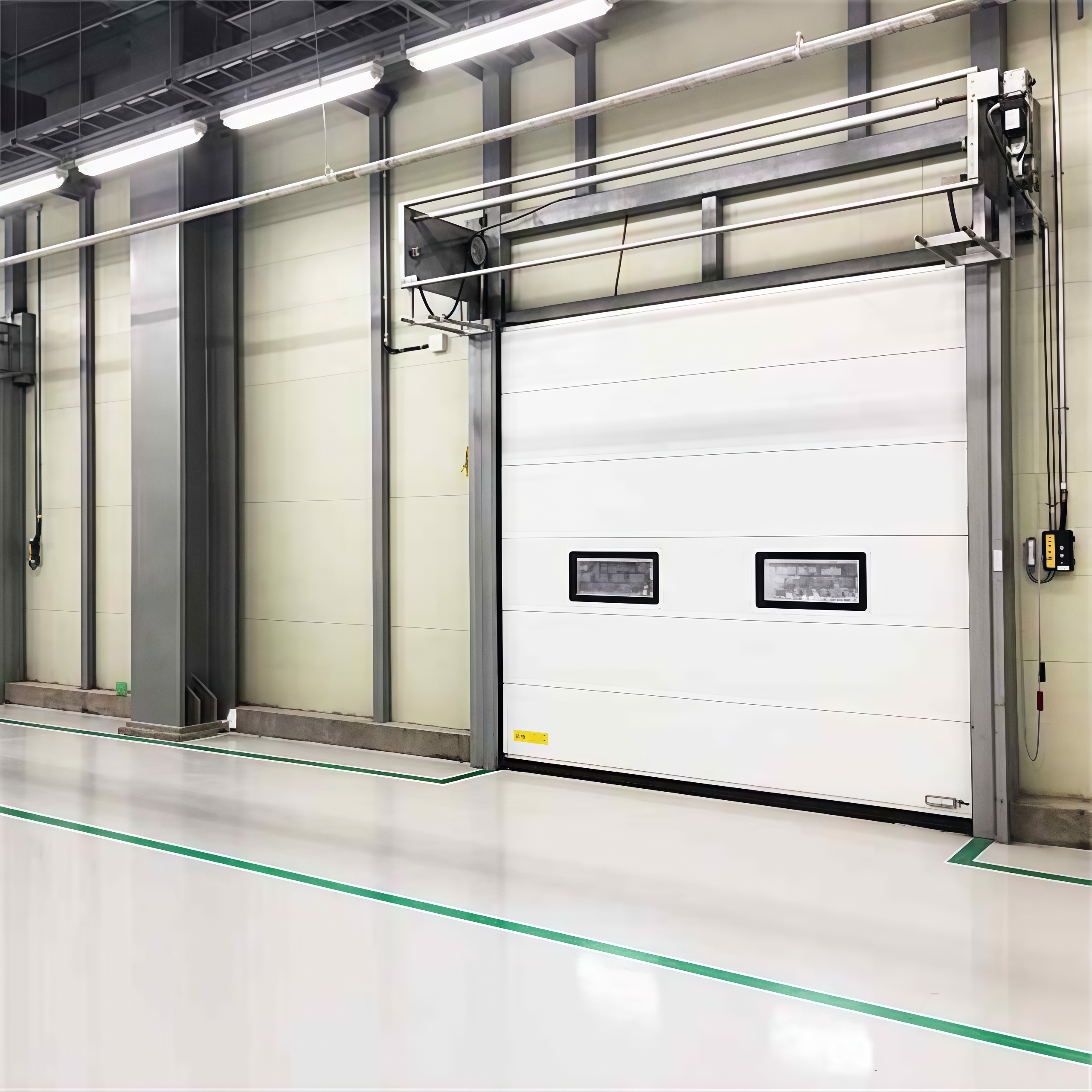

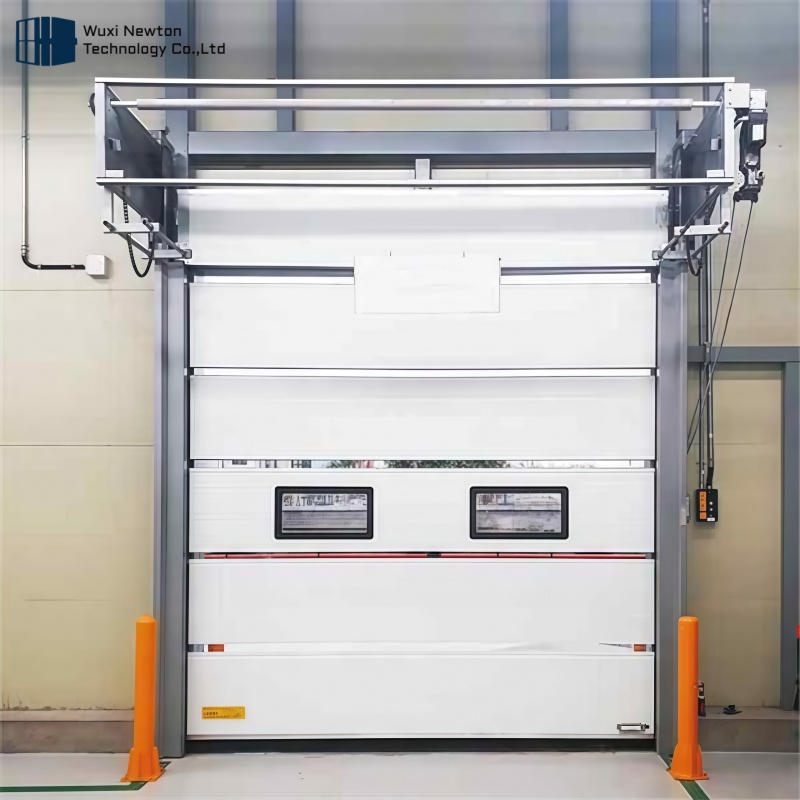

| Product Name | Industrial Upper Hanging Stacking Door |
|---|---|

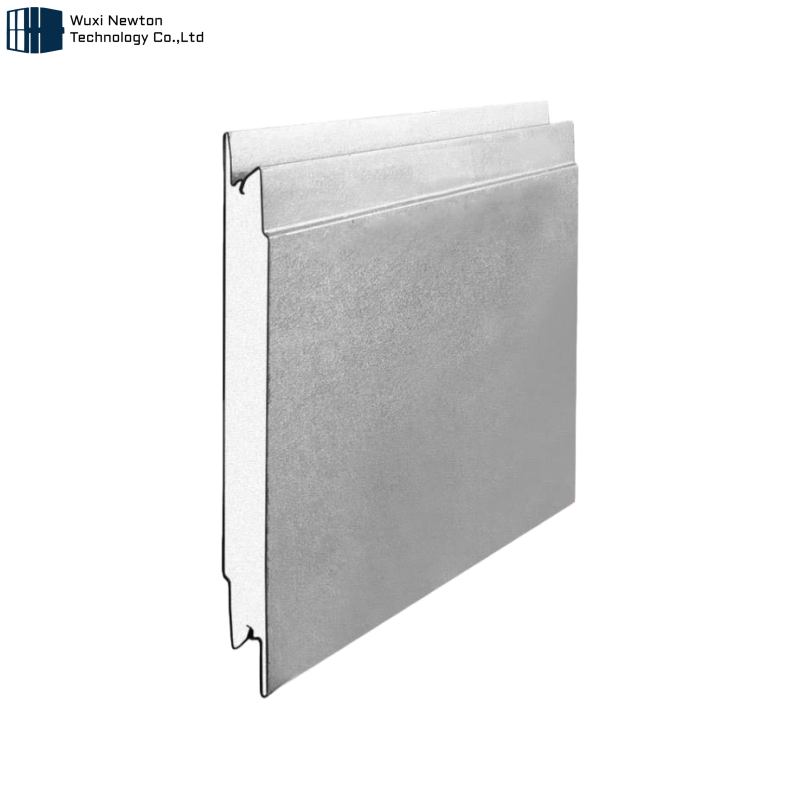

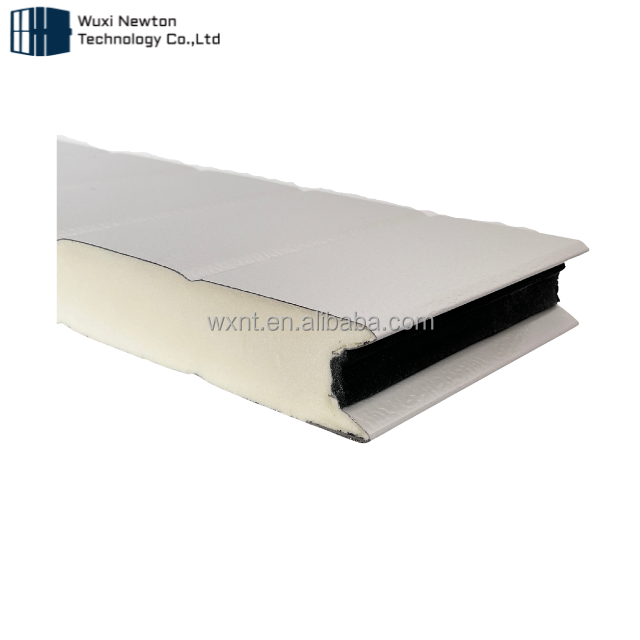

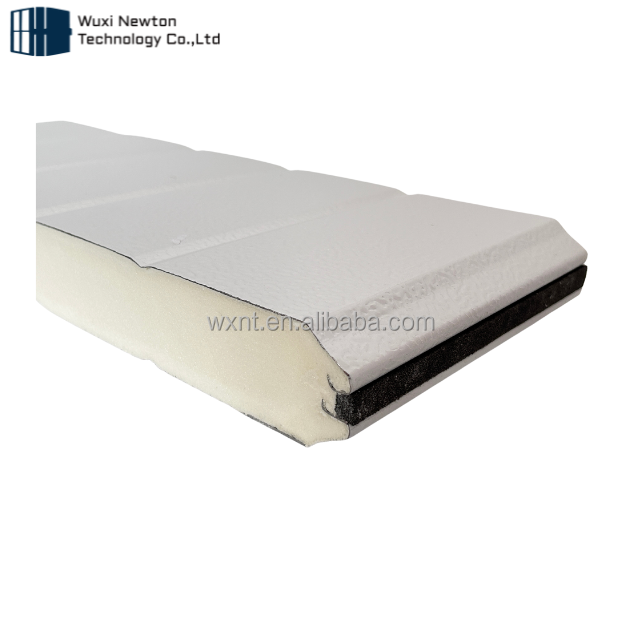

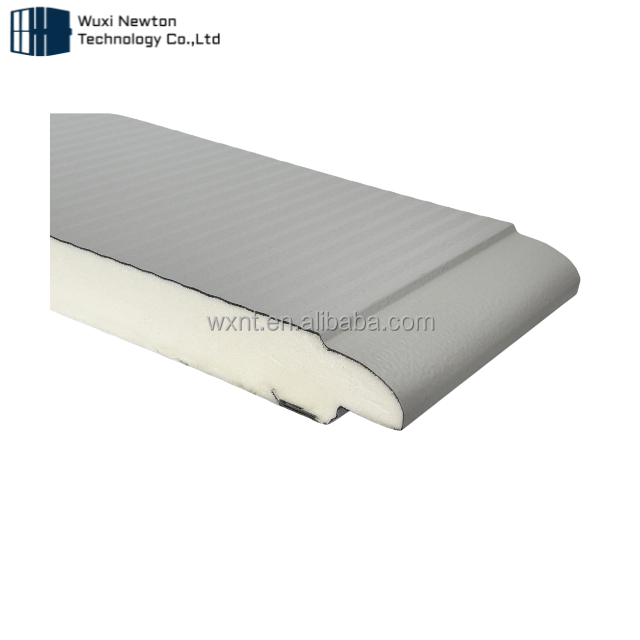

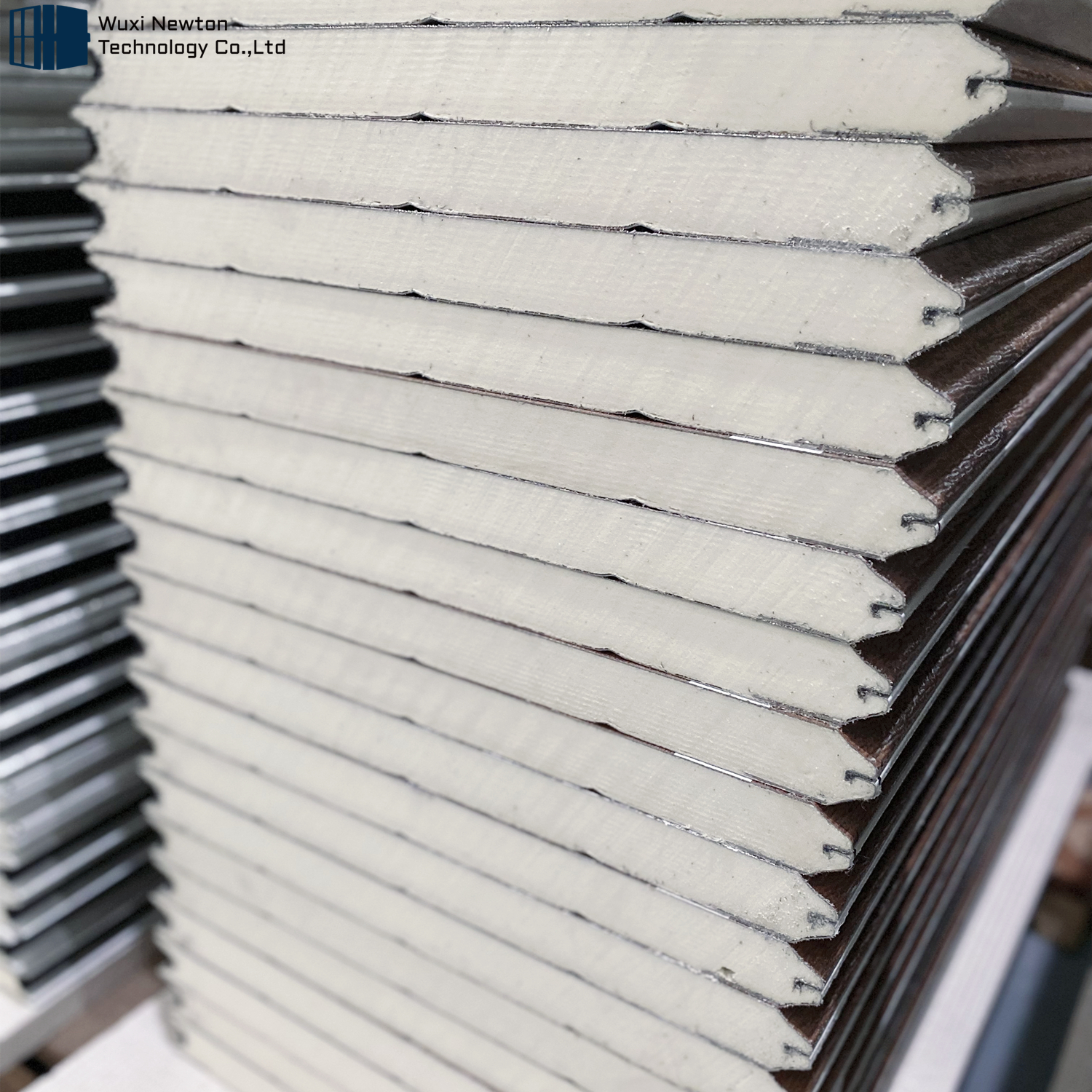

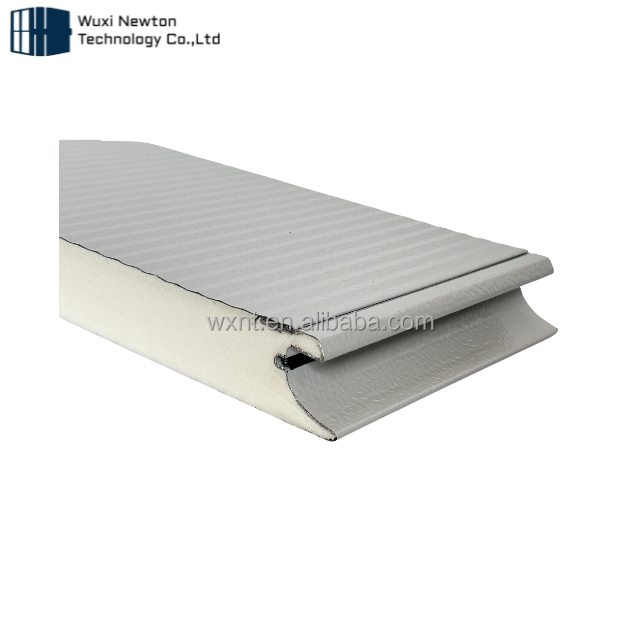

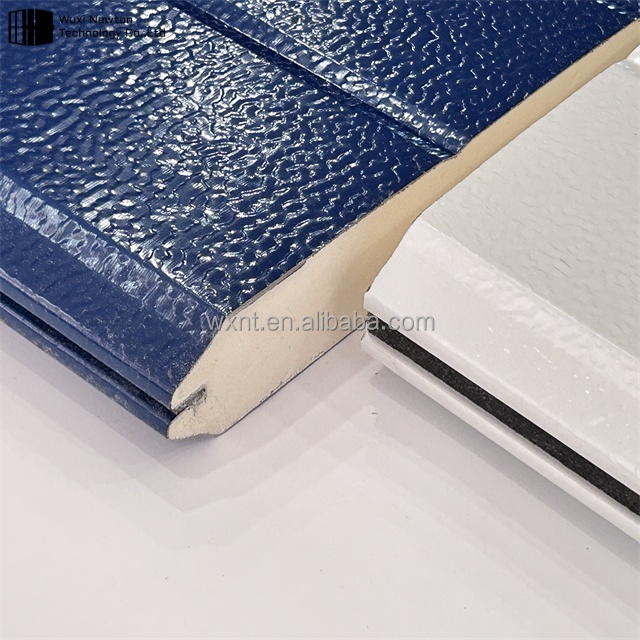

| Door Panel Thickness | 40, 60, 100mm |
| Door Frame Density | 42KG/m³ |
| Opening And Closing Speed | 0.06-0.18m/s |
| Wind Resistance Grade | 11 |
| Wind Resistance | 55M/S |

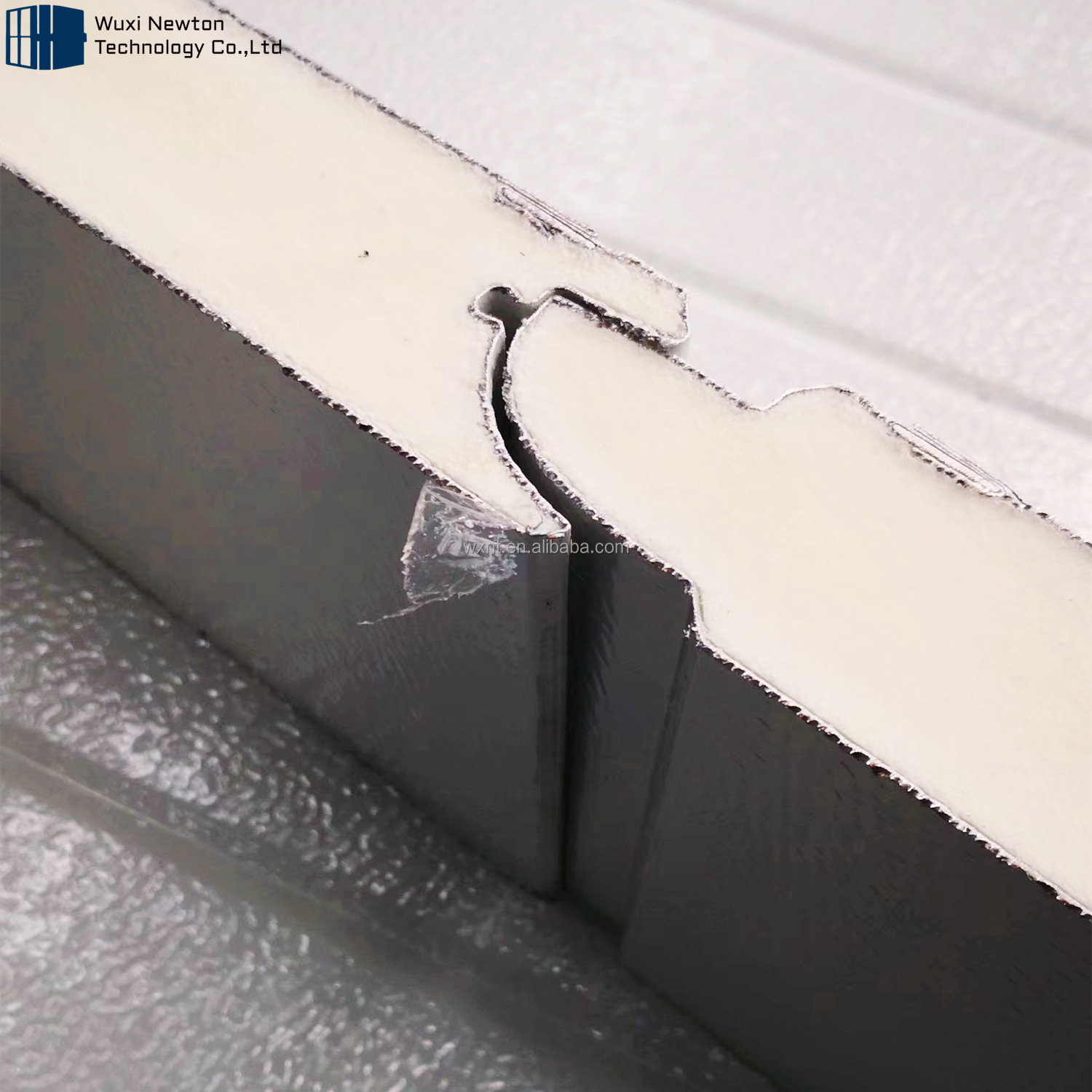

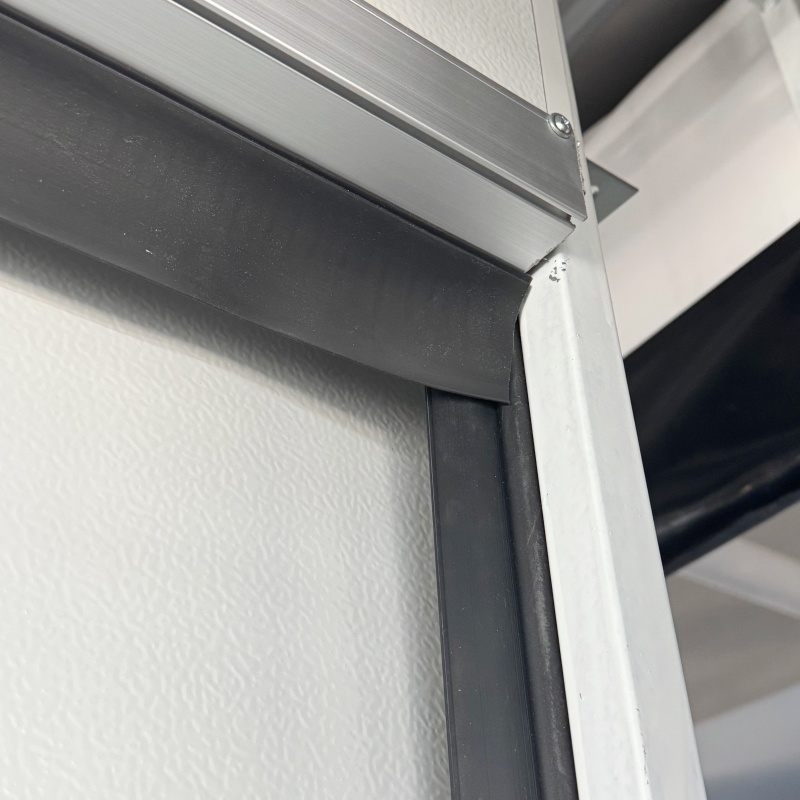

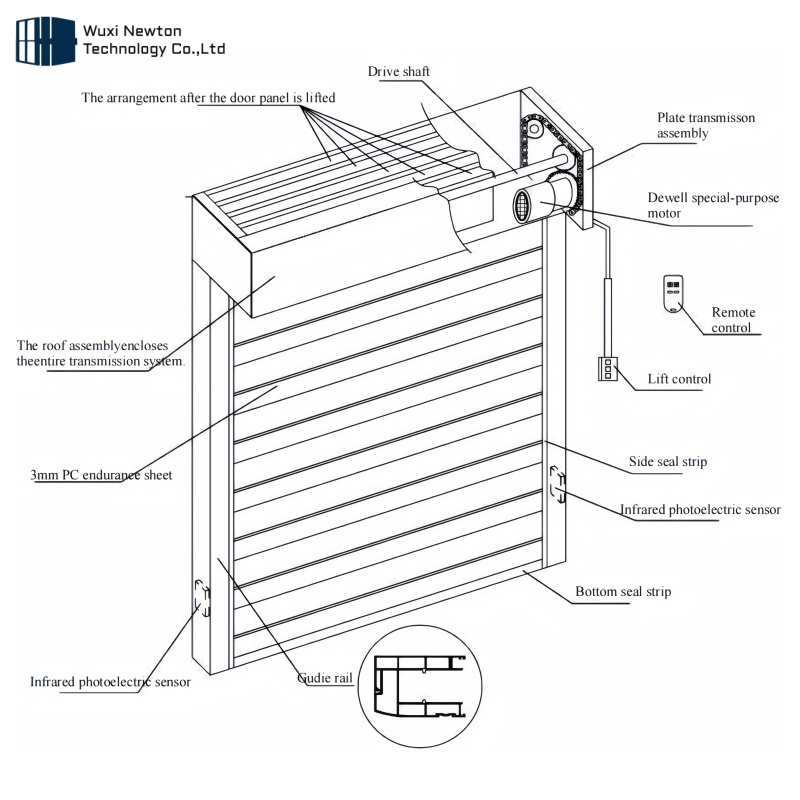

On both sides of the guide rail, three ethylene propylene diene monomer sealing strips are installed on the upper and lower parts of the door body. The door body is pressed and interlocked to ensure no ventilation

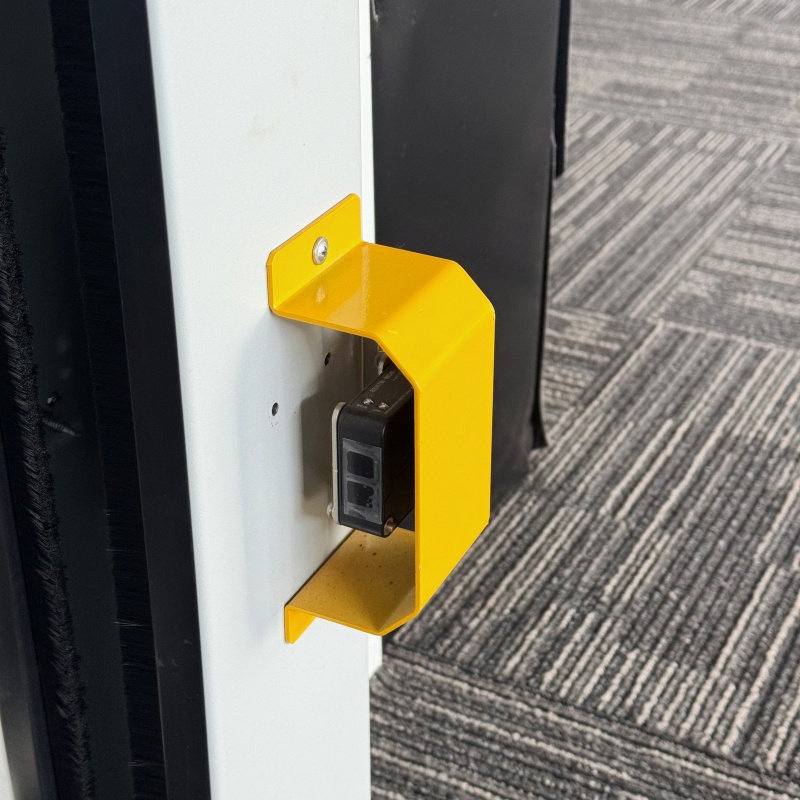

There are two pairs of infrared eyes on both sides of the slide rail. When there is an obstacle under the door, the door remains open to effectively protect the objects and pedestrians under it from accidents

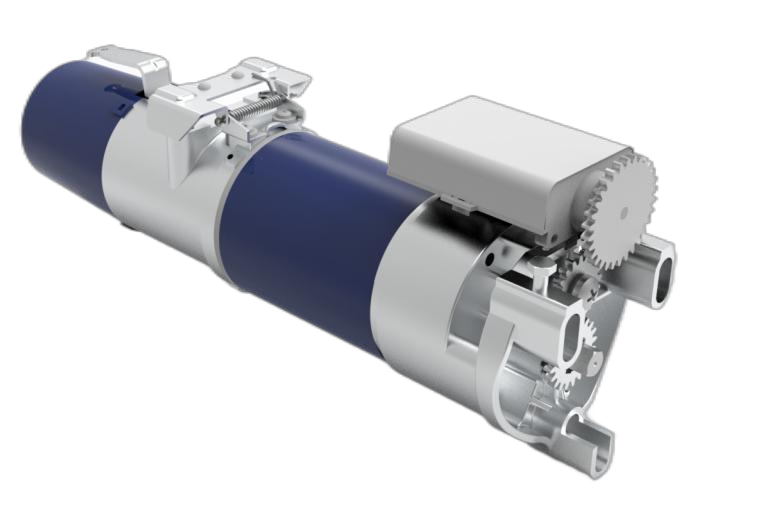

The system employs an industrial external motor with a 1500kg capacity, equipped with an overheat protection device and precision-guided positioning to prevent overtravel. Featuring a power output exceeding 385N.M and operating noise below 50dB, it meets essential safety requirements including self-locking anti-slip mechanisms and stop-on-obstruction functionality. The switch operates at 0.08-0.15m/s speed, ensuring a service life of ≥10,000 cycles while maintaining uninterrupted operation for up to 5 consecutive cycles.
| Item | Voltage/Frequency | Torque (N.m) | Rotating (rpm) |
|---|---|---|---|
| LMW300-A/1P | 230V/50HZ | 250 | 6.2 |
| LMW600-A/1P | 230V/50HZ | 420 | 6.5 |
| LMW800-A/1P | 230V/50HZ | 650 | 5.3 |
| LMW1000-A/1P | 230V/50HZ | 820 | 5.5 |
