Direct factory wholesale pricing, modular Australian AS/NZS electrical compliance, and precision thermal insulation for cold chain logistics, high-throughput distribution hubs, and hygienic cleanrooms across Greater Sydney.
Strategic procurement intelligence for mechanical engineers, head contractors, and distribution center directors navigating Western Sydney's prime industrial boom and portside facility upgrades.
The industrial landscape of the Greater Sydney metropolitan region is undergoing an unprecedented logistical transformation. Propelled by mega-infrastructure investments surrounding the Western Sydney International (Nancy-Bird Walton) Airport, the Moorebank Intermodal Precinct, and major logistics parks across Eastern Creek, Kemps Creek, and Marsden Park, warehousing footprints now exceed tens of thousands of square meters per facility. In these high-frequency environments, traditional sectional roller shutters that require 20 to 30 seconds to open represent severe throughput bottlenecks and unacceptable energy leakages.
Simultaneously, Sydney's micro-climatic variance poses stark building performance challenges. Facilities operating in Western Sydney routinely face ambient summer temperatures exceeding 42°C, whereas coastal facilities in Botany Bay and Port Botany contend with elevated salt spray corrosion and relentless coastal winds. When industrial doors remain open, conditioned interior air escapes rapidly, drastically inflating HVAC operating expenditure. By integrating China-manufactured, high-precision automated rapid roll doors operating at speeds of 1.5 to 2.5 meters per second, industrial facilities prevent air turbulence, mitigate convective heat exchange, and enforce micro-climate containment within chilled distribution, FMCG, and high-tech manufacturing complexes.
In cold storage and cold chain warehousing across NSW, energy conservation is governed by building thermodynamic laws. The volumetric infiltration of warm, humid air into a refrigerated zone during a door cycle can be calculated via the standard air exchange formula:
Q = C × A × √(2 × g × H × (ΔT / T_avg)) × t_cycle
Where Q is total infiltration volume, A represents doorway clear aperture area, H is doorway height, ΔT is the thermal gradient across zones, and t_cycle is total door opening, dwell, and closing duration. By reducing t_cycle from 38 seconds (standard commercial roller door) down to 5.2 seconds with a high-speed spiral or rapid PVC roll-up system, facility managers diminish sensible heat loads by over 80%. This directly reduces mechanical refrigeration compressor load, prevents ice crystallization along cold room thresholds, and accelerates compliance with corporate ESG decarbonization targets under the Australian National Construction Code (NCC 2022) Section J.
| Door Technology System | Typical Opening Speed | Wind Load Class (AS/NZS 1170.2) | Thermal Value (U-Value) | Primary Sydney Application Area |
|---|---|---|---|---|
| Spiral Turbo Hard Aluminum Shutter | 1.5 – 2.5 m/s | Class 4 (≥ 118 km/h) | 0.68 W/(m²·K) (Insulated Slat) | External perimeter security, logistics docks, underground car parks |

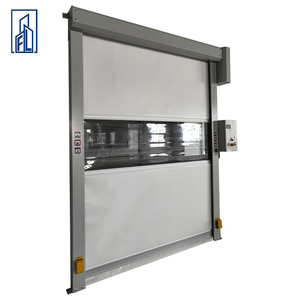

| High-Speed PVC Rapid Fabric Door | 1.0 – 2.0 m/s | Class 2 (Internal / Low Wind) | 5.6 W/(m²·K) (Single Sheet) | Internal zone separation, e-commerce conveyor gates, packaging bays |
| SUS304 Self-Repairing Cleanroom Door | 1.2 – 1.8 m/s | Differential Pressure ≥ 50 Pa | Airtight Seal (Class 4 EN 12426) | Pharmaceutical cleanrooms, semiconductor labs, sterile food packaging |
| Insulated Sectional Overhead Door | 0.25 – 0.4 m/s | Class 3 (≥ 90 km/h) | 0.45 W/(m²·K) (40mm PU Core) | Overnight thermal perimeter closure, intermodal freight transfer bays |
From coastal saline port zones to extreme high-heat inland warehousing corridors, our custom-manufactured door assemblies integrate specialized metallurgy, electrical isolation, and advanced sensory controls.
Facilities handling perishable seafood, beef, and dairy near Port Botany and Botany Industrial Park require corrosion-resistant, high-insulation barriers. Our SUS304 high-speed roll-up doors and insulated turbo spiral doors prevent condensation formation, maintain deep-freeze zones (-22°C), and protect steel structural framing from corrosive salt-laden maritime air.
Corrosion Proof • Grade 304 Stainless
E-commerce distribution centers in Eastern Creek, Erskine Park, and Kemps Creek operate 24/7 cross-docking loading docks with automated guided vehicles (AGVs). Rapid PVC roller doors with radar triggers, floor induction loops, and PLC-integrated interlocks provide sub-second access, completely eliminating vehicle collision downtime.
AGV Ready • High Frequency Servo

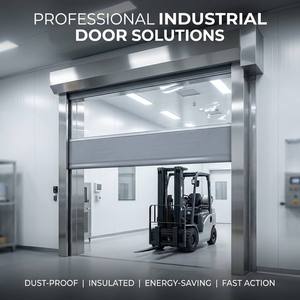

Sydney's medical technology and pharmaceutical clusters in Macquarie Park and Silverwater operate under strict cGMP compliance. Our negative-pressure and positive-pressure cleanroom fast doors feature anti-static curtains, hermetic track seals, and interlock systems to prevent particulate cross-contamination between airlocks.
GMP Compliant • Airlock InterlockingBypassing costly local middleman markups does not mean compromising on technical or legal building code compliance. Every fast speed door package leaving our factory is custom-engineered to meet stringent NSW building and electrical codes.
Safety of industrial drives and drive-motor safety trip circuits. Integrated optical safety bottom edges and safety light curtains (infrared grids up to 2.5m elevation) trigger instant curtain reversal upon beam interruption, safeguarding personnel and forklifts according to SafeWork NSW mandates.
Structural validation against Sydney Wind Region A (Terrain Category 2 & 3). High-rigidity extruded aluminum double-walled slats and heavy wind-lock end retainers withstand design wind pressures up to 1.4 kPa, preventing curtain track blowout in exposed open perimeter locations.
Our intelligent variable-speed servo control panels are fabricated with CE, UL, and RCM-compliant components. Optimized for standard Australian 3-phase 415V/50Hz and 1-phase 240V/50Hz distribution, complete with pre-wired terminal blocks for seamless integration with local building management systems (BMS).

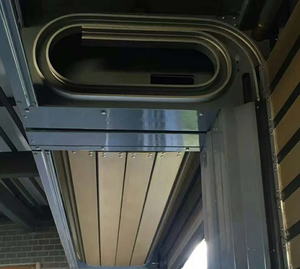

Traditional rolling shutters create acoustic metal-on-metal squeal and slat scratching during high-speed coiling. Sydney luxury automotive service hubs, residential loading docks, and premier distribution depots now prioritize non-contact spiral track designs. As the door curtain retracts, circular spiral tracks store the insulated slats without physical surface contact, eliminating operational friction, reducing noise below 60 dBA, and significantly prolonging slat powder-coating aesthetics.
Forklift impacts account for over 65% of unexpected industrial door maintenance callout charges across Western Sydney logistics centers. The latest high-speed soft-bottom PVC doors adopt zipper-style teeth guided within polyethylene side tracks. If struck by a pallet jack or forklift, the curtain automatically detaches from the track without mechanical damage, re-inserting itself into the guide channel on the very next closing cycle, saving thousands in emergency repair fees.
Straightforward answers addressing Australian compliance, Port Botany shipping lead times, installation logistics, and spare parts management.
Our rapid roller and spiral doors are pre-configured specifically for the Australian electrical power supply (240V 1-phase or 415V 3-phase, 50Hz). Control panels use certified RCM, CE, and UL compliant switchgear with integrated isolation switches. For personnel safety, we integrate dual safety systems: an automatic infrared light curtain or transmitter/receiver safety photocell alongside an optoelectronic bottom-edge sensor that immediately commands full opening if any obstruction enters the closing envelope, adhering to AS/NZS 60335.2.103 and SafeWork NSW directives.
Standard fabrication time for custom-dimensioned high-speed doors is typically 10 to 15 working days following shop drawing sign-off. Direct sea freight from China's primary ports (Shanghai, Ningbo, or Shenzhen) to Port Botany, Sydney, takes approximately 12 to 16 days transit. We furnish full export documentation, including Bills of Lading, Packing Lists, Commercial Invoices, and Certificates of Origin for Australian Customs duty optimization under ChAFTA. Doors are securely packaged in fumigated plywood crates to safeguard powder-coated guide tracks and delicate motor encoders.
Yes, absolutely. Our high-speed door systems are engineered as modular 'plug-and-play' assemblies. All wiring harnesses running between motors, encoders, light curtains, and safety edges are pre-terminated with labeled aviation plugs or numbered screw terminals. We supply comprehensive step-by-step English installation manuals, mechanical anchor dimensioning templates, and high-definition schematic wiring diagrams. Local Sydney electricians or industrial door technicians can effortlessly complete the mechanical mounting and electrical commissioning within 4 to 6 hours per doorway.
Unlike rigid steel or traditional ribbed PVC doors that bend and jam in their channels upon impact, our self-repairing zipper doors feature a continuous flexible polyurethane edge without rigid metal wind bars. Upon impact, the zipper teeth pop out of the high-density polyethylene track smoothly, preventing curtain tears or guide track deformation. During the subsequent opening cycle, the self-resetting funnel guide teeth automatically steer the curtain back into the channel, restoring full operation without manual intervention or maintenance callouts.
Every commercial wholesale shipment includes a complementary critical spare parts package: spare control circuit fuses, photocell eyes, replacement drive belts (if applicable), and limit sensors. Our servo controllers and variable frequency drives are built using globally standard industrial microelectronics (e.g., Delta or Schneider componentry). If non-standard parts are ever required, we provide expedited international air freight dispatch directly to Sydney within 3 to 5 business days, backed by direct video engineering support from our factory technical team.
Yes. Our aluminum alloy spiral turbo rapid doors are engineered with double-skinned insulated aluminum slats (43mm or 50mm core) backed by structural nylon wind-lock end hinges. When closed, the interlocking geometry creates an exceptionally rigid curtain curtain assembly certified to Wind Resistance Class 3 to Class 4 under EN 12424 / AS/NZS 1170.2 criteria, resisting wind gust velocities in excess of 118 km/h. They are ideal for exterior warehouse facades across exposed terrain in Western Sydney and coastal industrial zones.
Whether you require complete container loads for a new Western Sydney distribution center or a bespoke high-insulation spiral shutter for coastal cold storage, our factory engineering team provides detailed technical quotations, CAD structural drawings, and thermal performance calculations within 24 hours.
