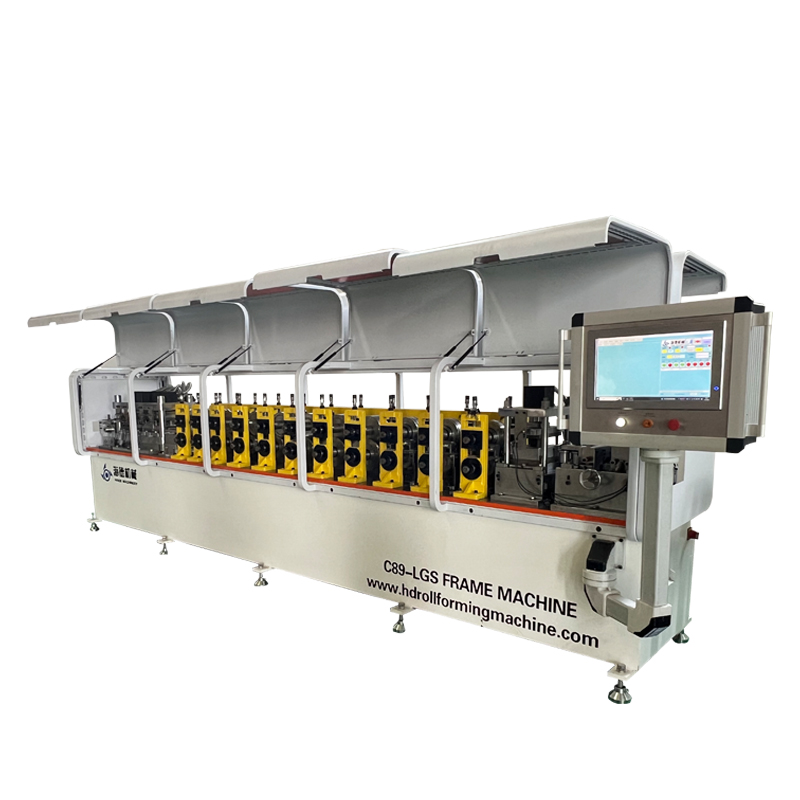

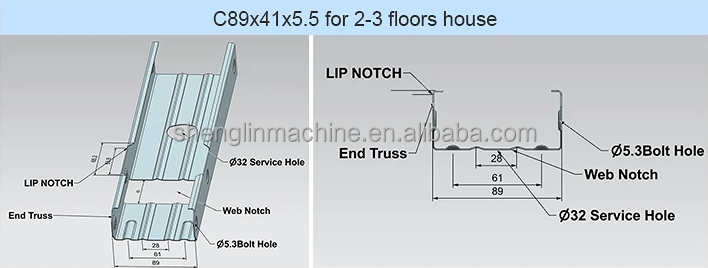

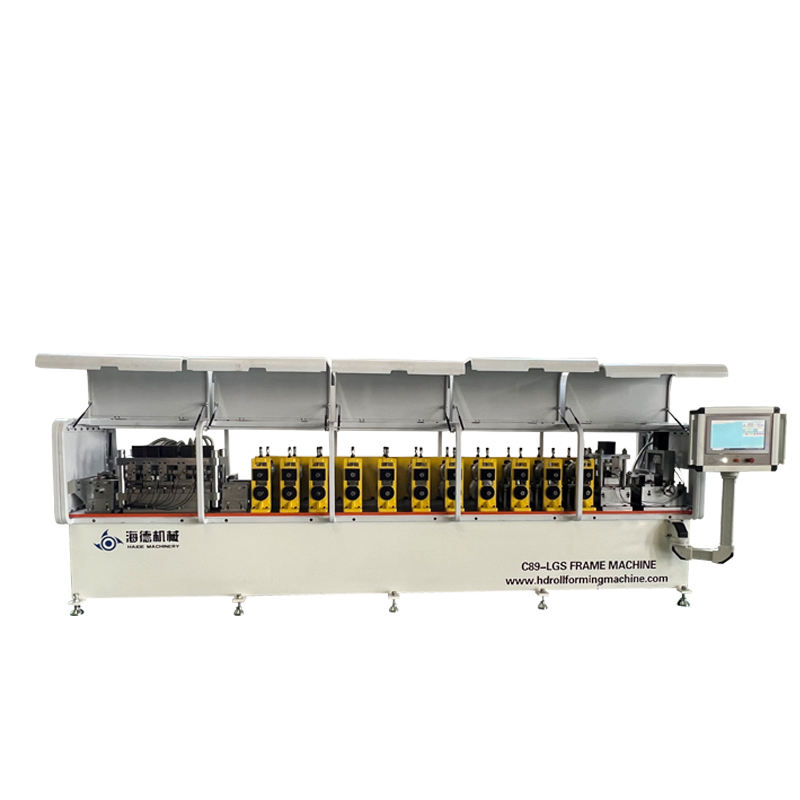

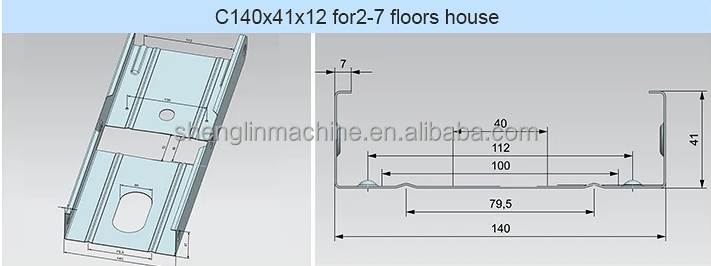

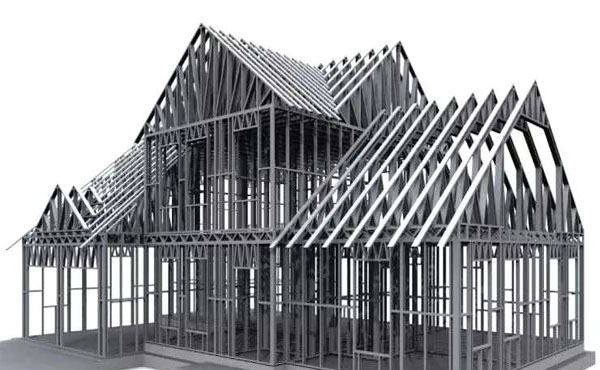

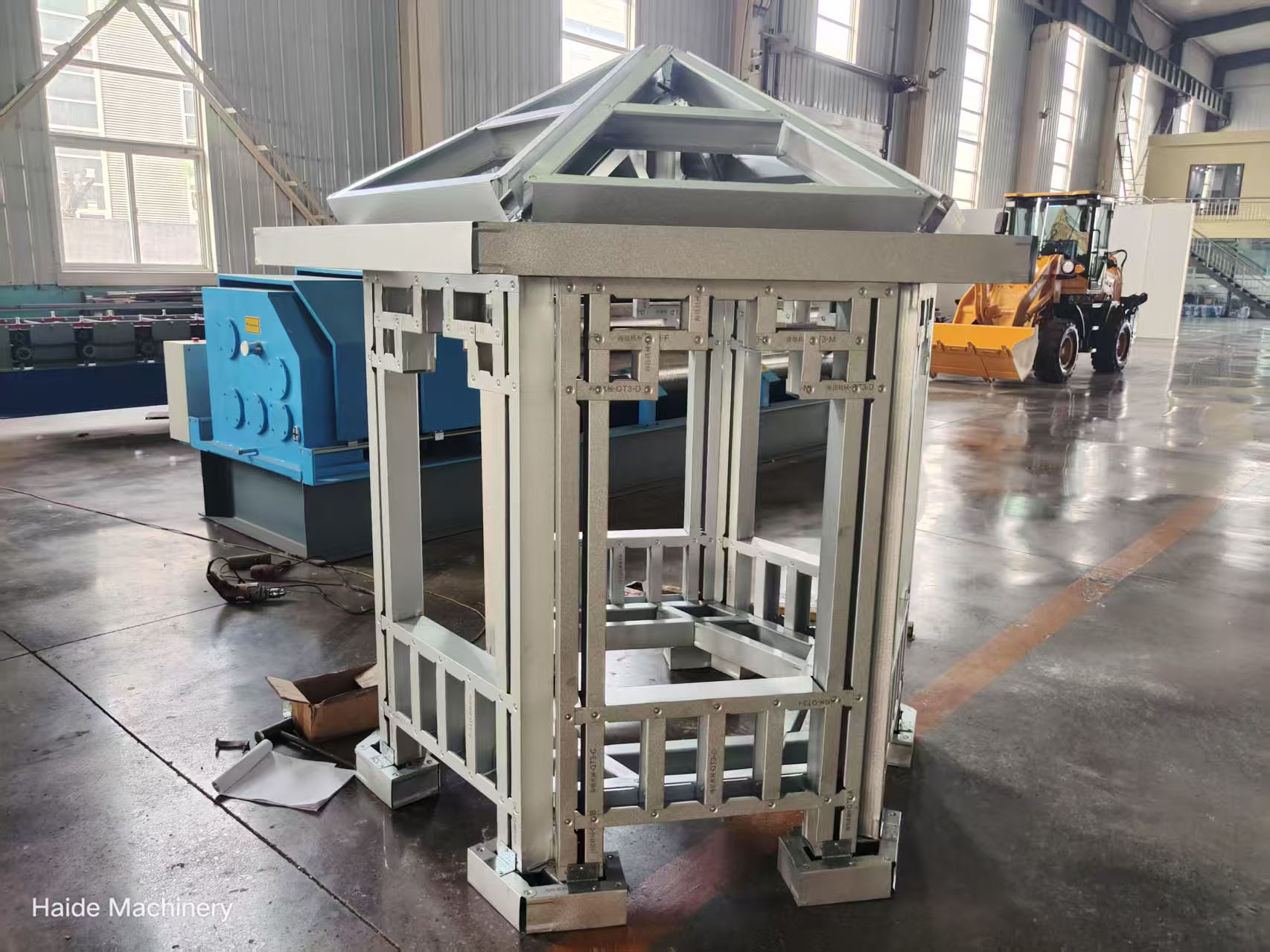

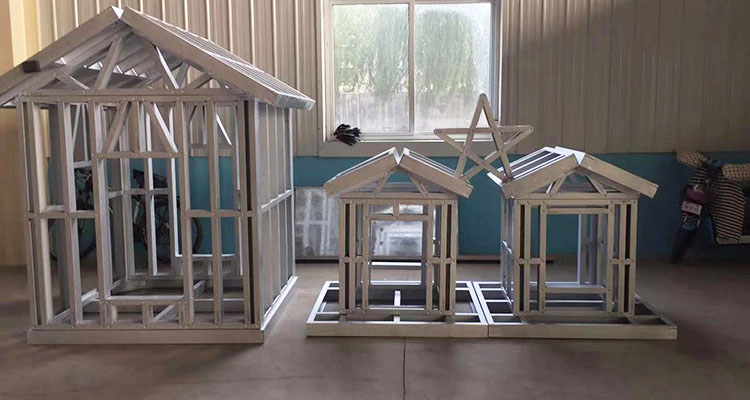

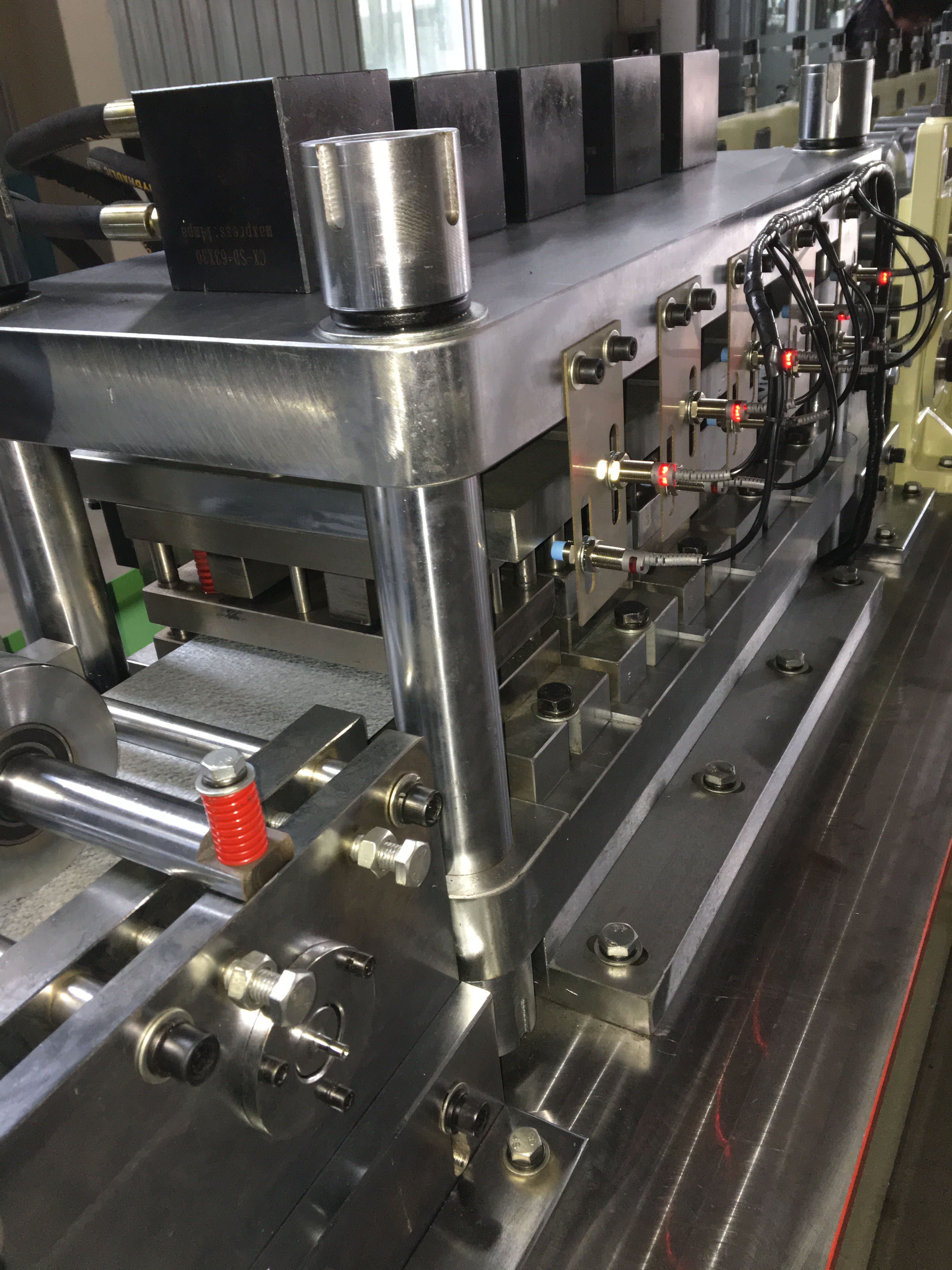

The light steel villa keel machine is a specialized industrial equipment engineered for manufacturing light steel keels. It is primarily utilized to fabricate rigid skeleton materials for light steel structural villas and prefabricated architectural buildings. (C89 C140)

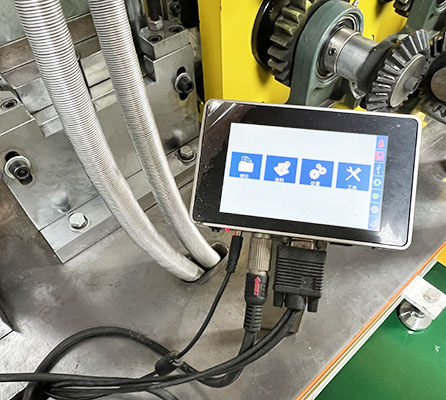

Can spray logo, pattern, Chinese and English characters, numbers for automatic marking of finished products.

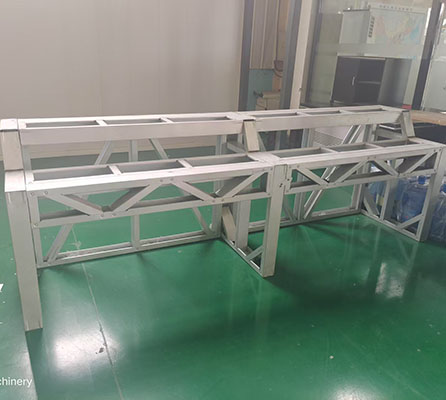

3-meter manual finished material support frame. This table can produce and install by the machine.
| Number | Subject | Details | Technology |
|---|---|---|---|
| 1 | Machine color | As you need | Baking paint |
| 2 | Machine size | 5.1*0.8*1.6m | Annealing stress relief, 4-meter CNC precision machining |
| 3 | Machine weight | 5T | - |
| 4 | Forming method | 11 steps | Cold roll forming |
| 5 | Transmission mode | Gears and chains | - |

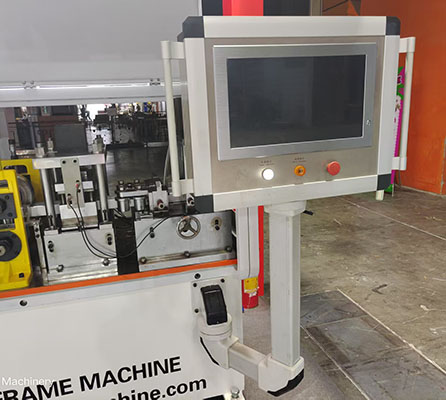

| 6 | Main motor | 7.5KW servo motor | Servo controlled |
| 7 | Rollers | Material: Cr12 Molybdenum Vanadium | Vacuum heat treatment after CNC semi precision machining 60-62HRC, CNC precision machining |
| 8 | Shafts | Material: 40Cr | Tempering treatment to 280-300HB, CNC semi precision machining followed by grinding machine precision machining |
| 9 | Working speed | 35m/min | 400m/min (Wall keel) |
| 10 | Production capacity | 2500-3000m/day | About 4-6 tons/day |

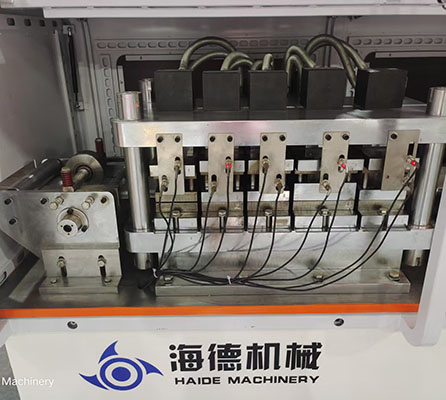

| 11 | Hole spacing error | ±0.5mm | Forward punching and backward shearing |
| 12 | Length error | ±0.75mm | - |
| 13 | Straightness error | 2000:1 | - |
