Premium zinc or aluminum-zinc coating provides long-lasting protection against rust and harsh environments.
High-quality PE, SMP, HDP, or PVDF coatings offer excellent UV resistance and color retention.
Suitable for bending, roll forming, stamping, and other fabrication processes without coating damage.

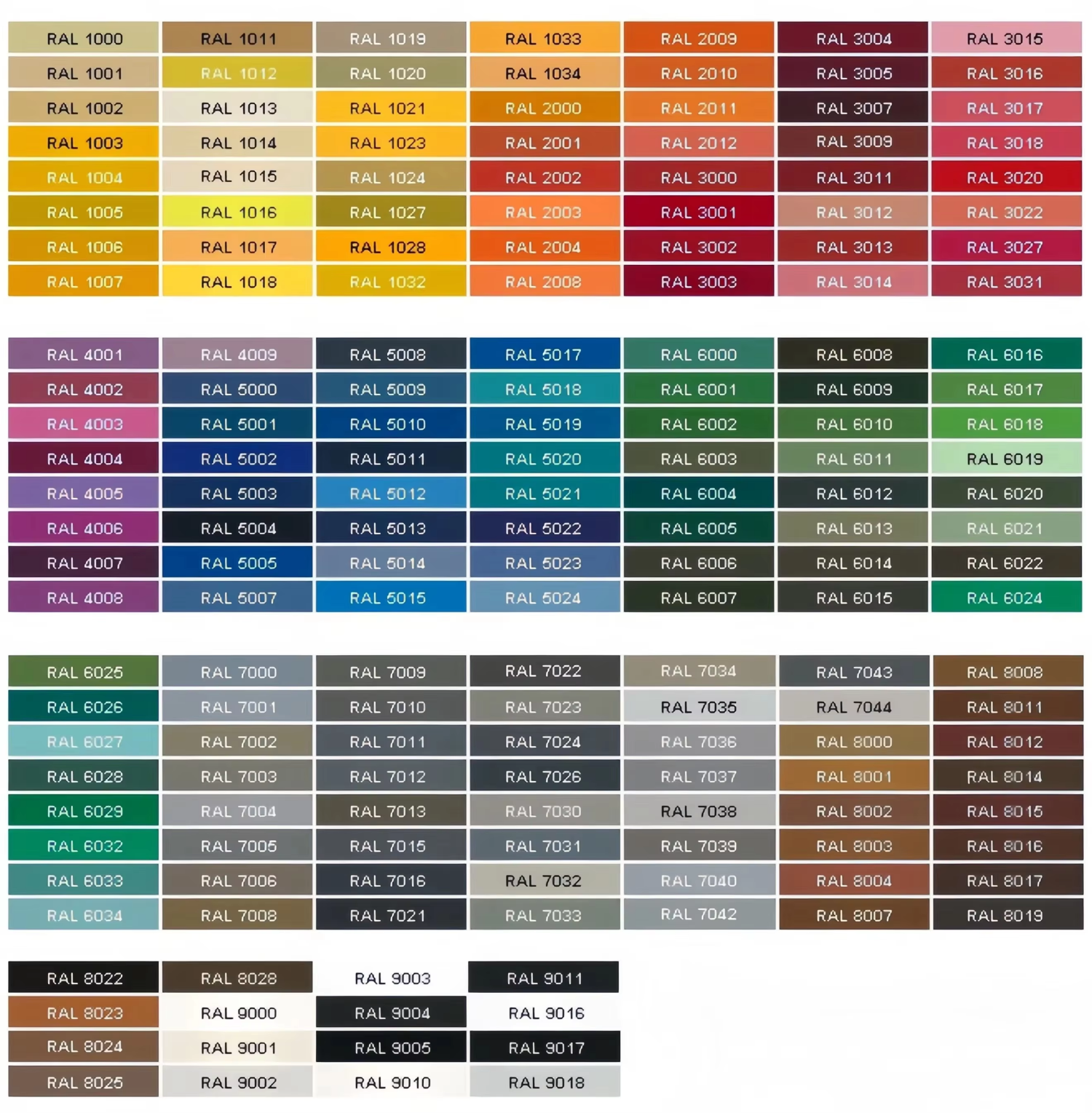

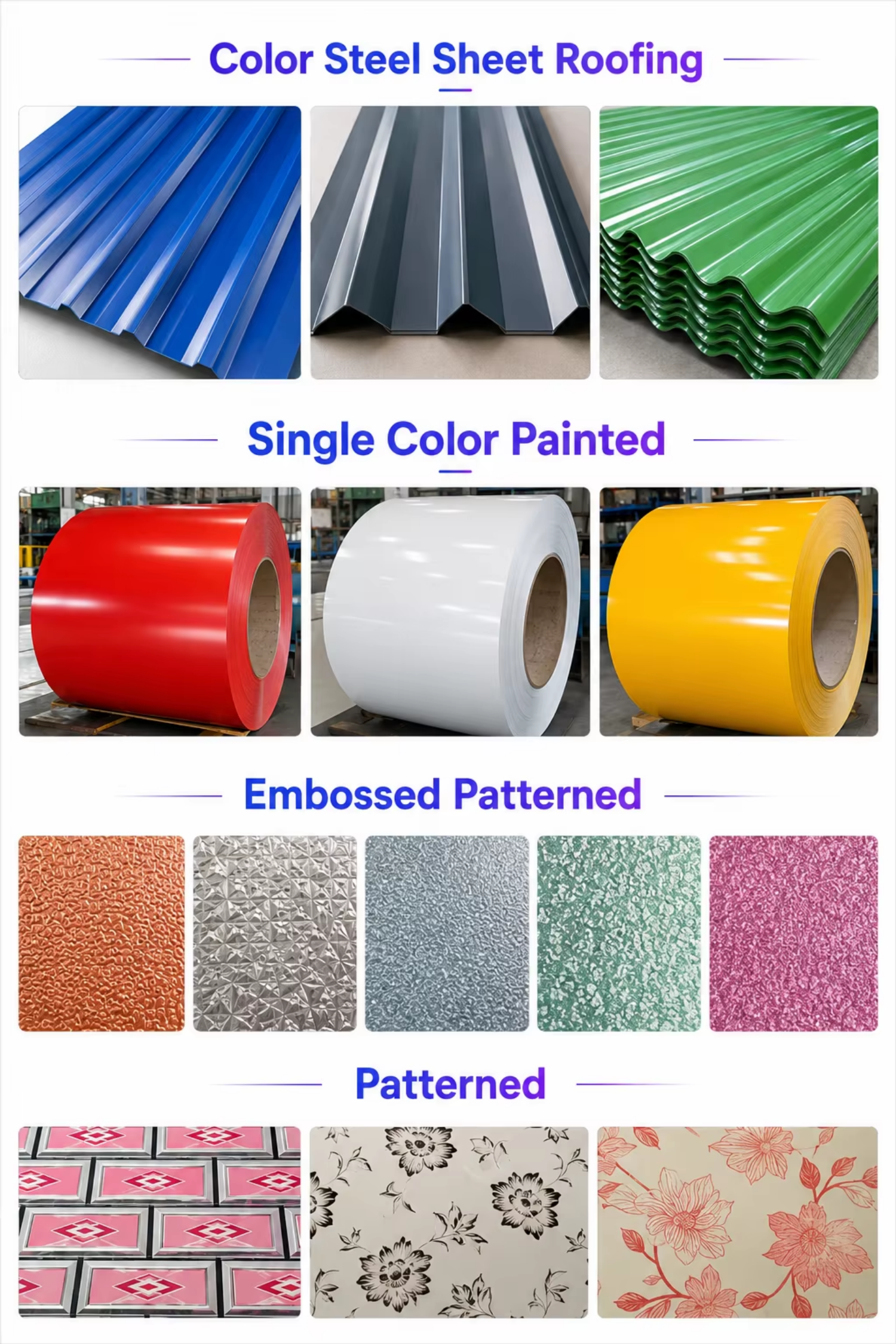

Available in all RAL colors with customized thickness, width, coating, and surface finishes.
Ideal for roofing, wall cladding, sandwich panels, home appliances, steel structures, and decorative projects.
Manufactured under a rigorous quality control system with Mill Test Certificate (MTC) available.
Competitive pricing, stable quality, fast delivery, OEM/ODM services, and professional export packaging.

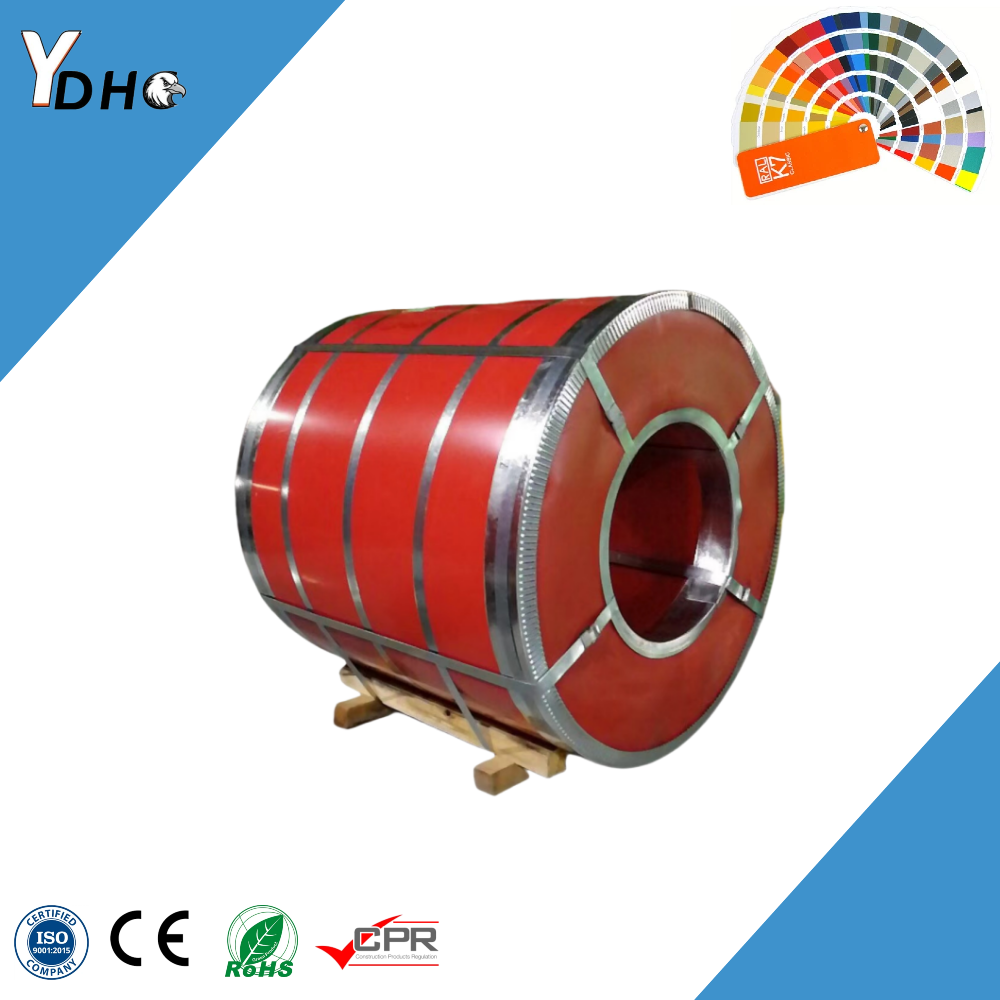

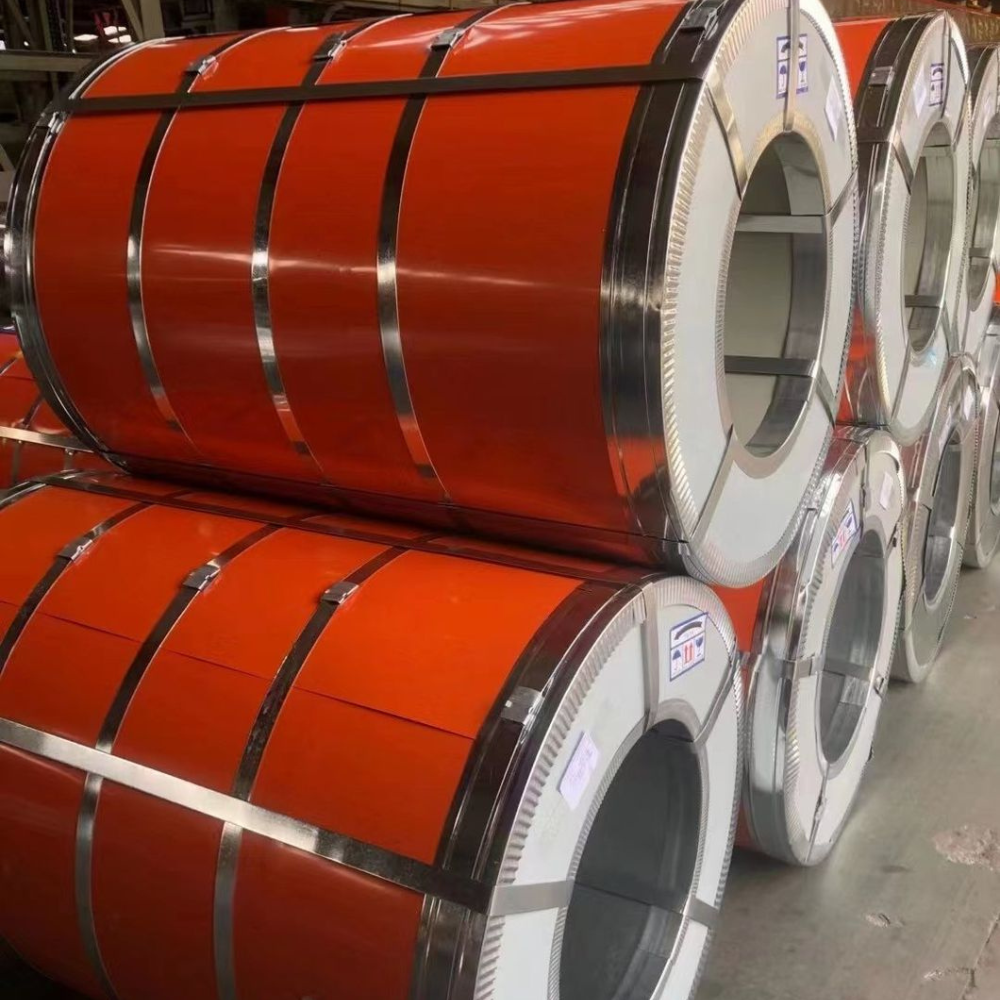

| Product Name | Prepainted Galvanized / Galvalume Steel Coil (PPGI / PPGL) |
| Base Metal | Hot-Dip Galvanized Steel (GI) / Galvalume Steel (GL) |
| Grade | CGCC, SGCC, SGCH, DX51D+Z/AZ, DX52D+Z/AZ, DX53D+Z/AZ, S220GD–S550GD |
| Thickness | 0.13–0.80 mm |
| Width | 600–1500 mm; common widths: 750, 914, 1000, 1219, 1240, 1250 and 1500 mm |

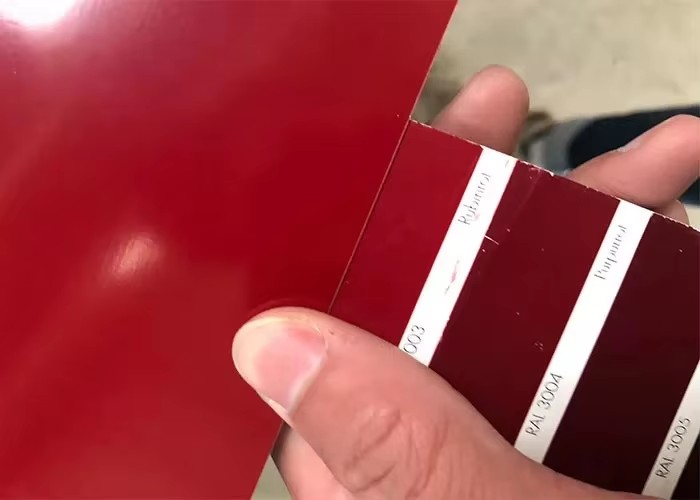

| Color | RAL colors; custom colors and patterns are available |
| Paint Type | PE, SMP, HDP, PVDF |
| Primer Type | Epoxy, Polyester, Water-Based Acrylic or Polyurethane Primer |
| Paint Coating | Top Side: 10–30 μm; Back Side: 5–25 μm |
| Metallic Coating | Zinc or Al-Zn coating; coating weight can be customized |
| Coil ID | 508 mm / 610 mm |
| Supply Form | Steel Coil |
| Surface Finish | Glossy, Matte, Embossed or Patterned Surface |

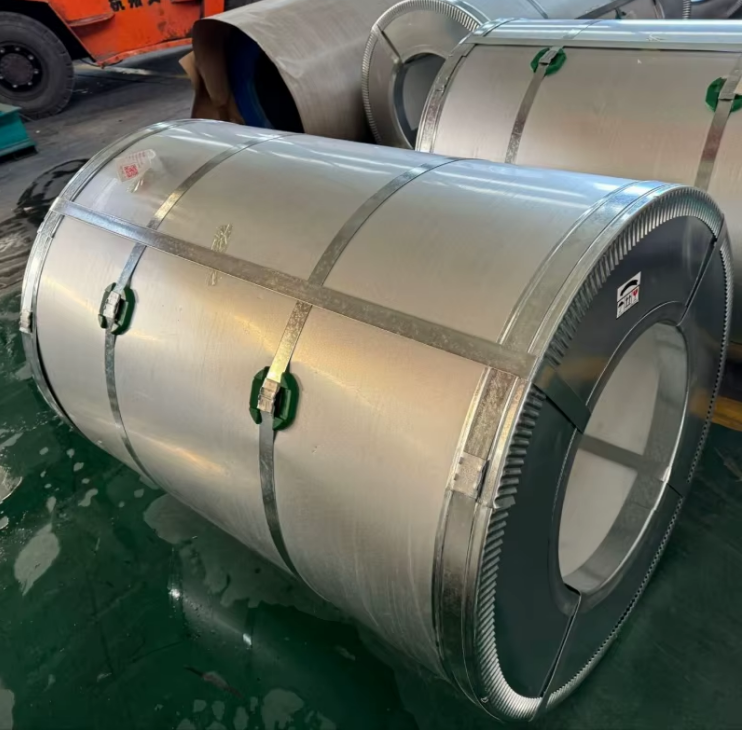

| Packing | Waterproof paper, plastic film, steel sheet protection and steel straps, or customized |
| Applications | Roofing sheets, wall panels, ceiling systems, cold storage panels, door panels, sandwich panels, home appliances and industrial equipment |

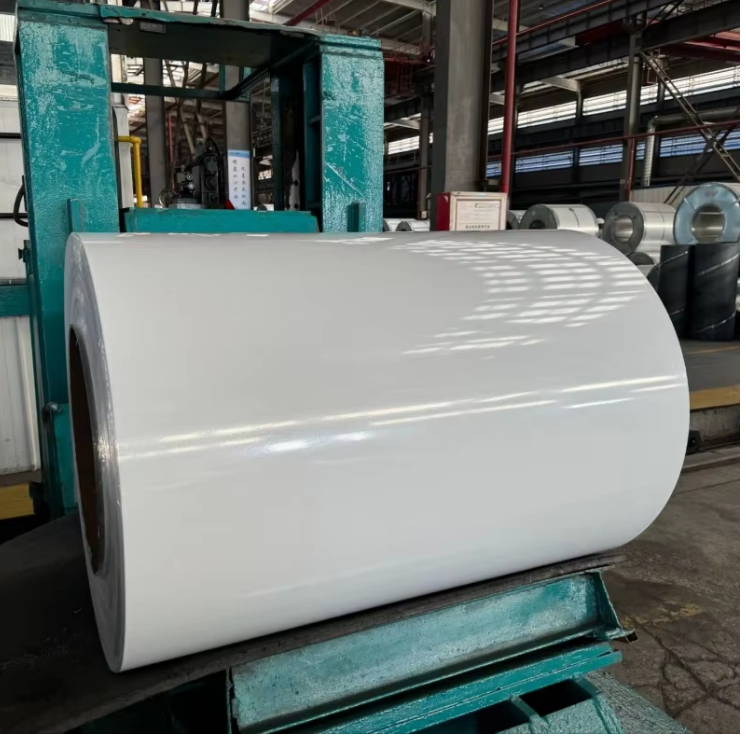

PPGI is manufactured by applying protective and decorative paint coatings to hot-dip galvanized steel.
It offers excellent corrosion resistance, attractive appearance, easy processing and long service life.
Applications: Roofing sheets, wall panels, doors, appliance housings and industrial buildings.
PPGL is produced by applying a durable color coating to an aluminum-zinc alloy-coated steel substrate. It offers excellent corrosion resistance, weather resistance, and long service life, making it ideal for demanding environments.
Applications: Widely used for roofing sheets, wall cladding, storage tanks, refrigeration equipment, industrial buildings, and other construction or manufacturing applications.

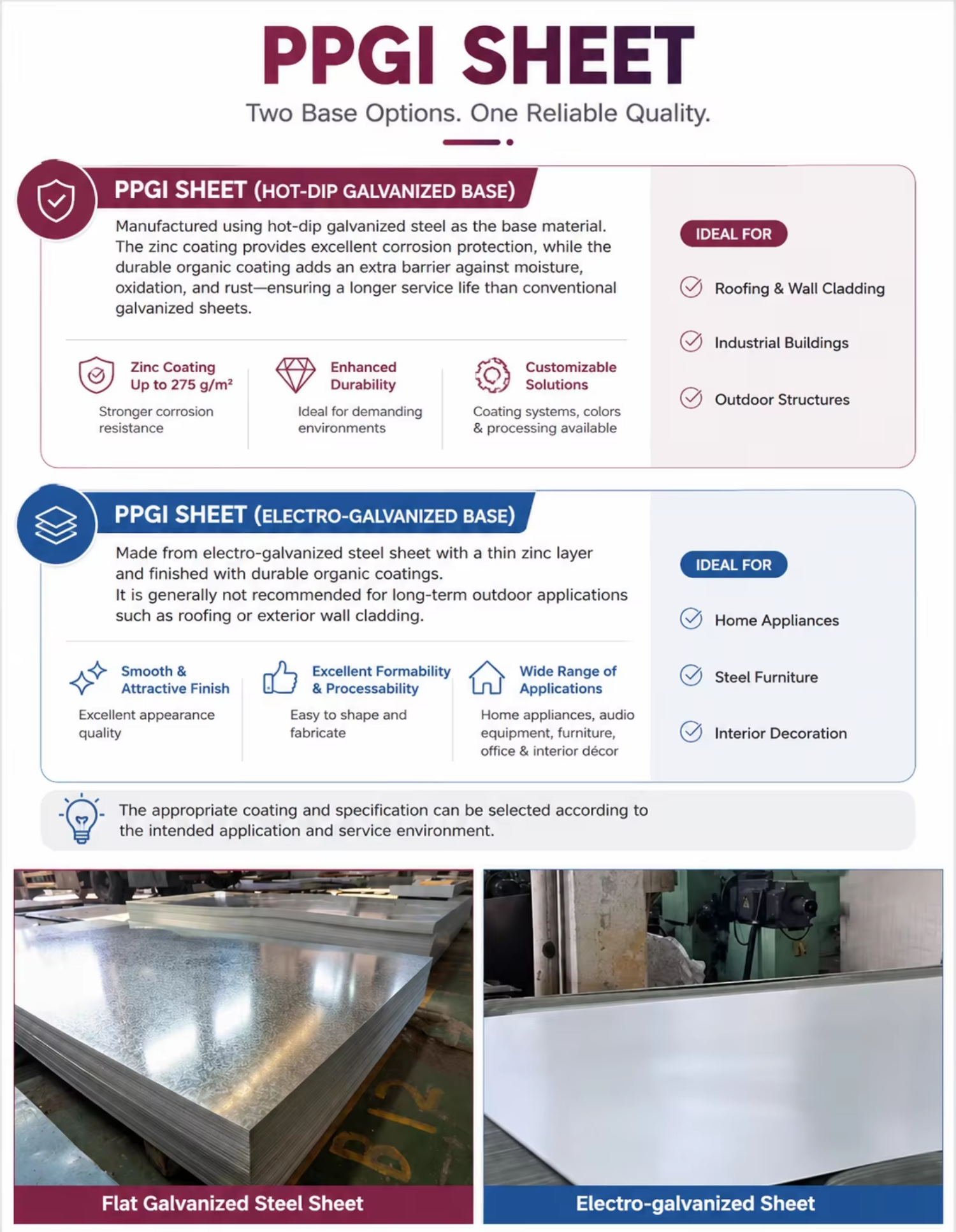

Pre-painted galvanized steel sheet (PPGI) uses zinc-coated steel as its substrate, combining the strength of the base metal with the corrosion resistance of the zinc layer.

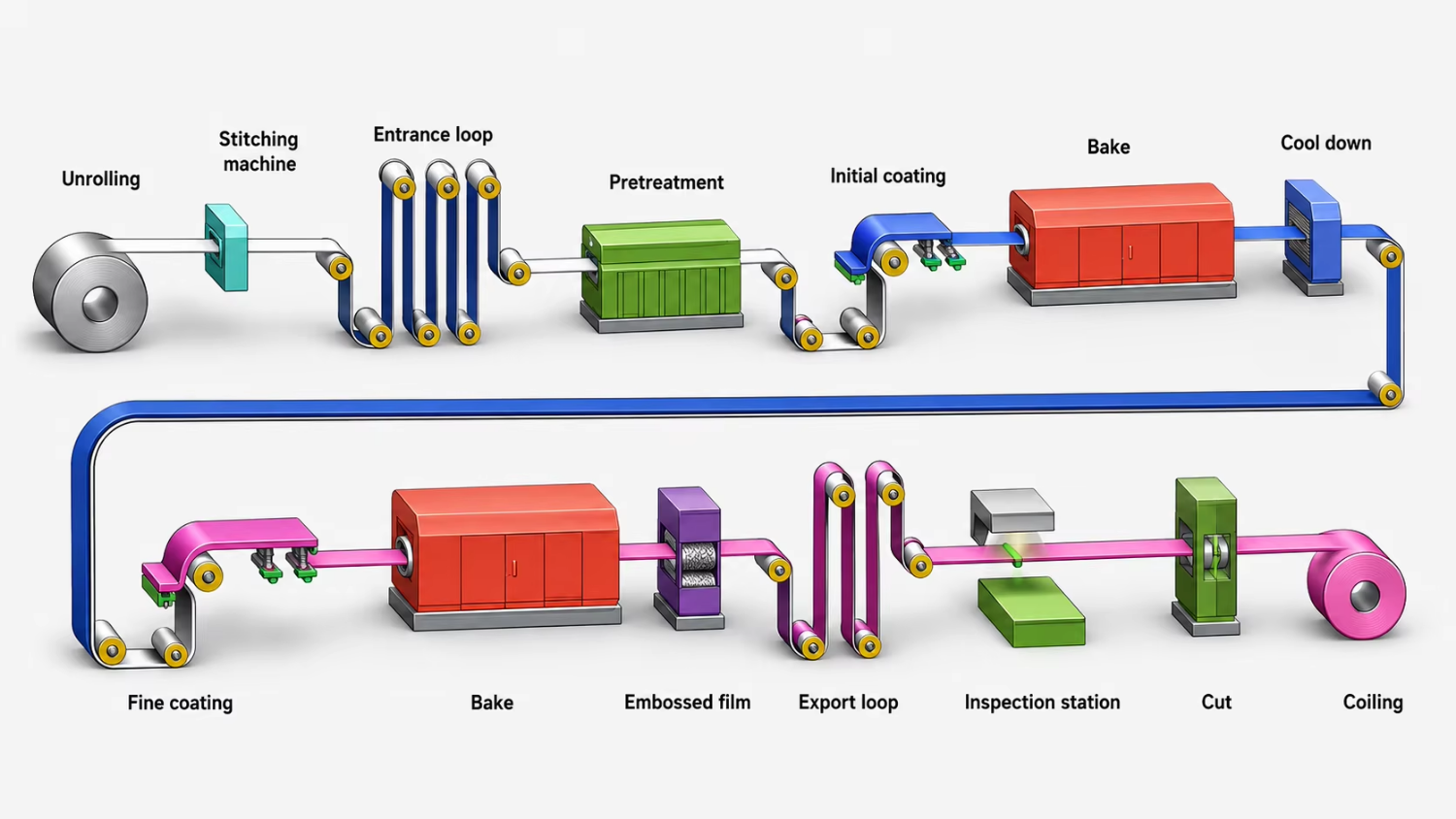

Before painting, the galvanized steel surface is thoroughly cleaned to remove rust, oil, dust, and other impurities. It then undergoes chemical pretreatment to improve coating adhesion and enhance corrosion resistance. After pretreatment, multiple layers of organic coatings are applied and baked to form a durable, attractive finish.

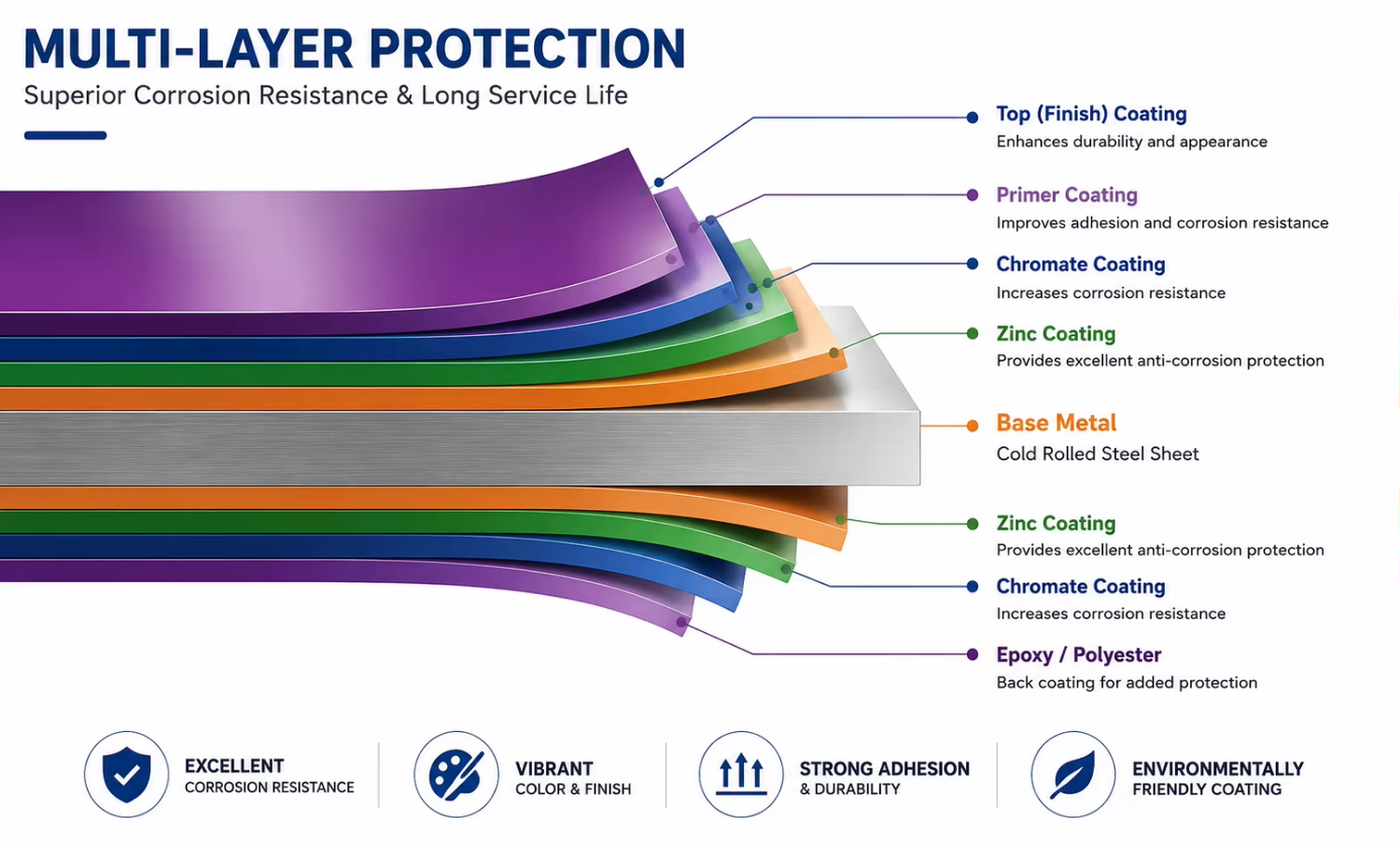

A typical double-sided, two-coat, two-bake PPGI sheet consists of:
Base Metal → Zinc Coating → Chemical Pretreatment Layer → Primer Coating → Top Coating / Back Coating.
This multi-layer structure provides excellent corrosion resistance, strong coating adhesion, long service life, and a high-quality decorative appearance.

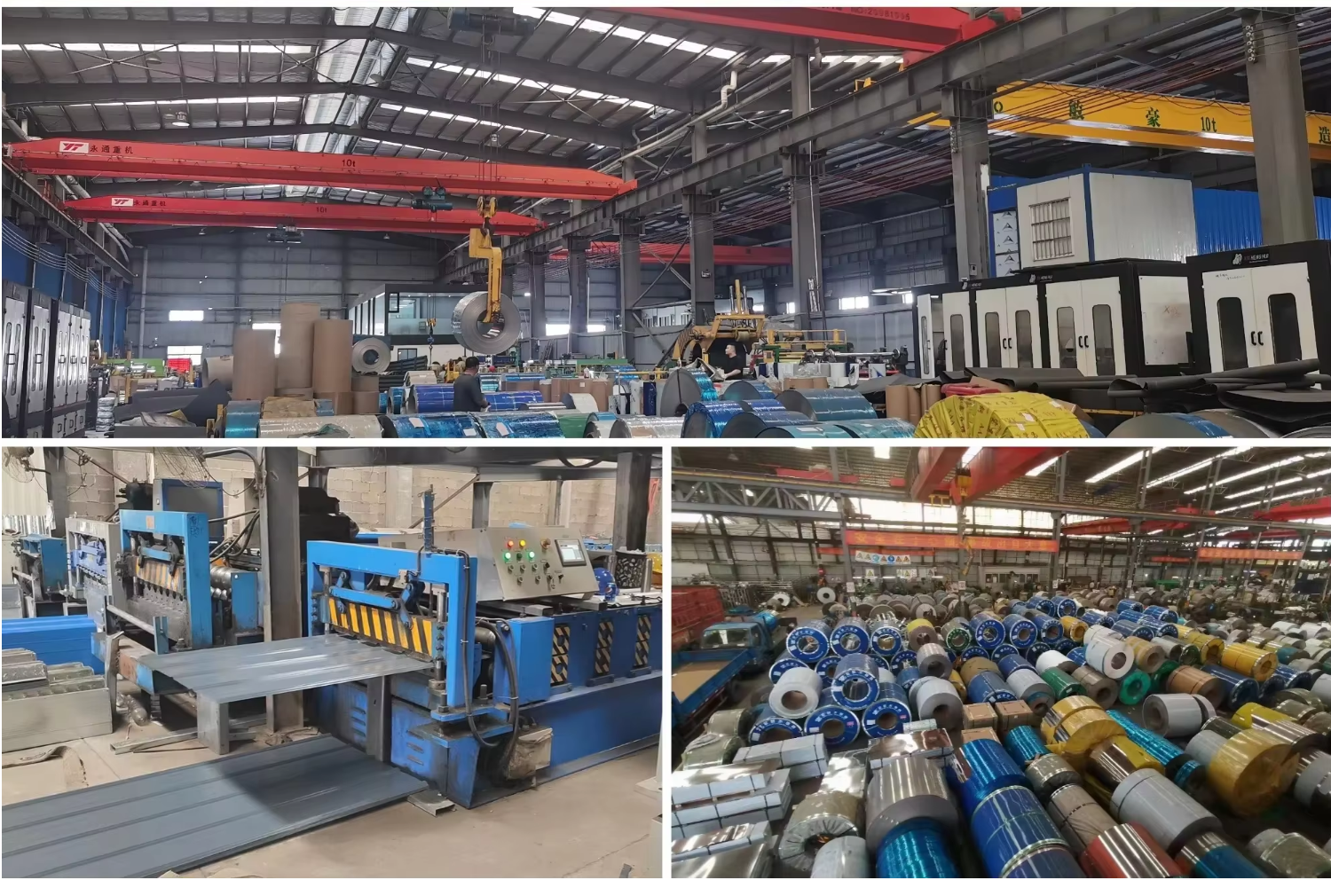

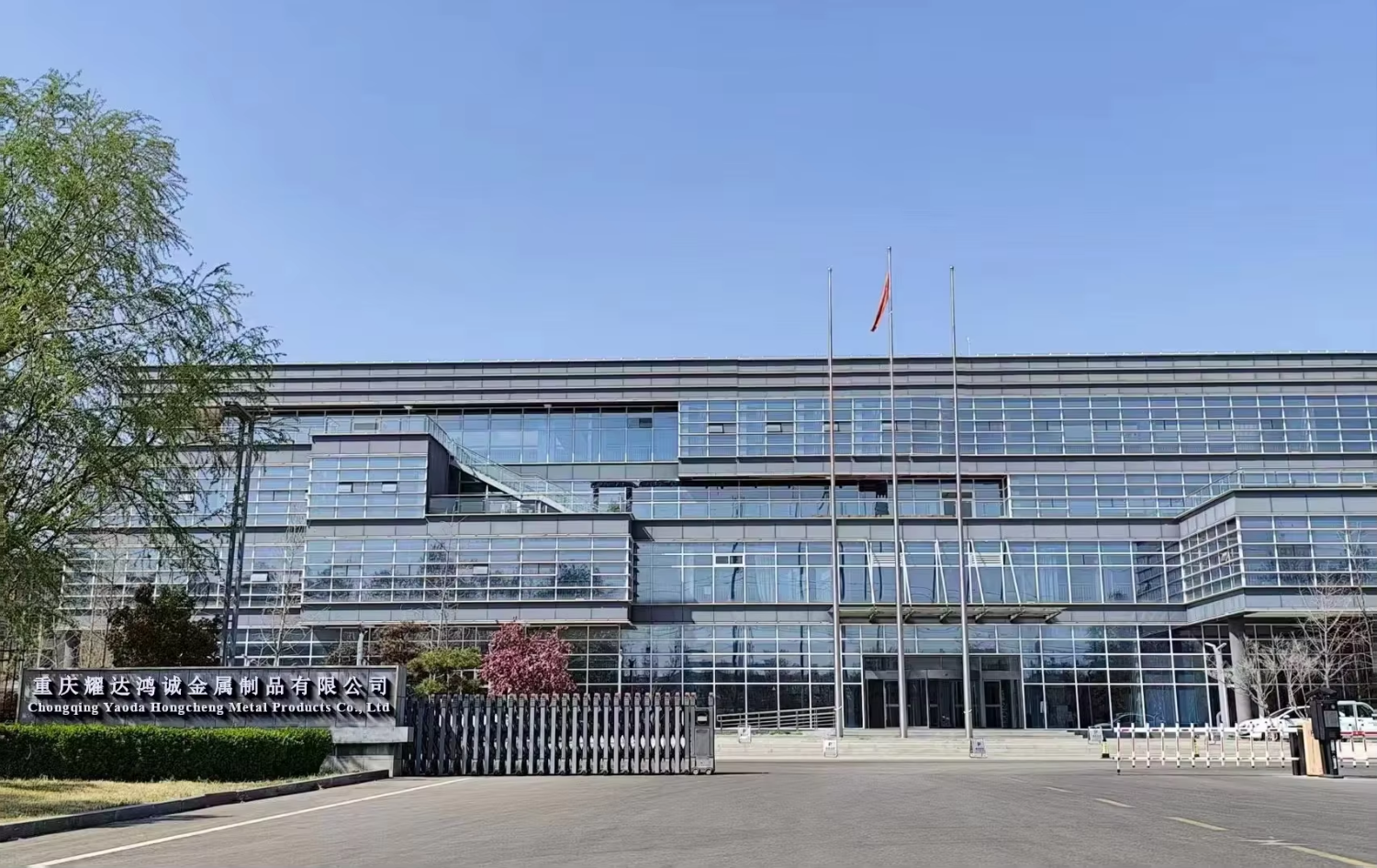

Chongqing Yaoda Hongcheng Metal Products Co., Ltd. is a professional metal products manufacturer integrating research and development, production, sales, and customer service. With SGS on-site verification and ISO 9001 quality management system certification, we maintain strict quality control throughout the entire production process to ensure consistent product quality, reliable performance, and stable supply. As an experienced steel manufacturing and deep-processing enterprise, our main products include:
Our products are widely used in construction, transportation, chemical processing, home appliances, light industry, roofing, wall cladding, and other applications. We manufacture products in accordance with GB, ASTM, EN, and other international standards. A wide range of steel grades, thicknesses, widths, zinc or aluminum-zinc coatings, surface finishes, colors, and packaging options is available to meet the requirements of different markets and projects.
In addition to standard products, we provide customized steel processing services, including slitting, cutting, profiling, corrugating, coating, and size customization.
Our integrated production and service capabilities allow customers to enjoy an efficient and convenient one-stop purchasing experience. Committed to quality, integrity, and long-term cooperation, Chongqing Yaoda Hongcheng Metal Products Co., Ltd. provides global customers with durable, high-performance, and precisely manufactured steel solutions.
Yes. Free samples are available, but customers are responsible for the international courier charges.
Please provide the steel grade, thickness, width, coating type or coating weight, required quantity, and intended application. This information will help us prepare an accurate quotation.
Product prices may vary depending on raw material costs, product specifications, order quantity, exchange rates, and current market conditions. Please contact us for the latest quotation.
Our company has obtained ISO 9001, SGS, and other relevant certifications. Product certificates and Mill Test Certificates can also be provided upon request.
Our standard delivery time is approximately 30–45 days after order confirmation and receipt of the deposit. The exact delivery time depends on the product specifications, order quantity, and production schedule.
Yes. We warmly welcome customers from around the world to visit our factory. Please contact us in advance so that we can arrange the visit and provide access to the appropriate production areas.

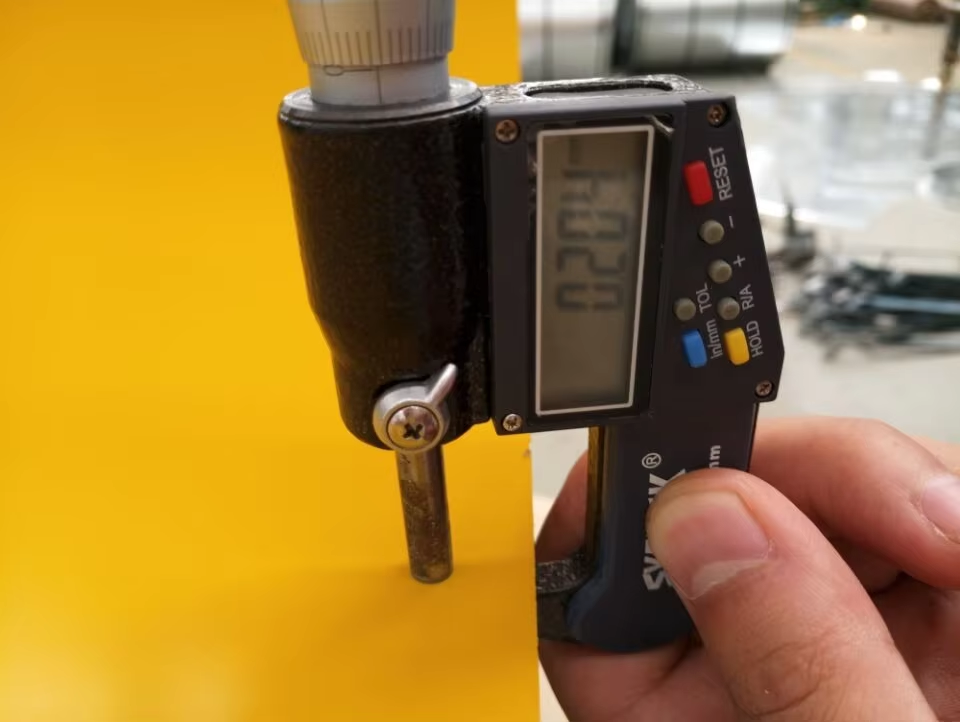

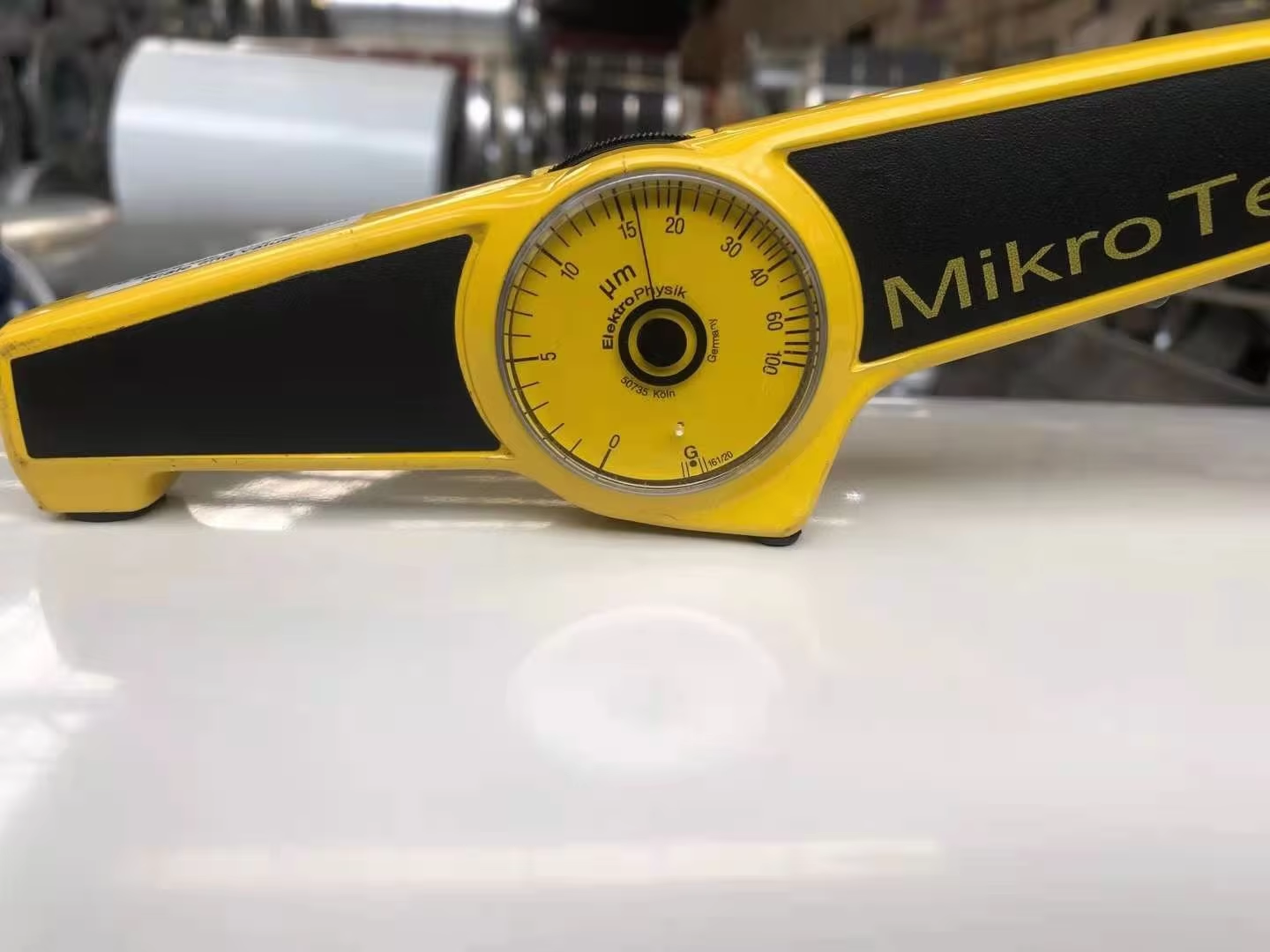

Yes. All products undergo strict quality inspections before packaging and shipment, including dimensional, surface, coating, and performance checks. Only qualified products are approved for delivery.
